P&R Infrared
Mini Thermal Riflescope

The REAP-IR® 3 packs a lot of high end capability into a compact and rugged thermal riflescope. An improved digital thumbstick provides faster system response, while a 12 micron thermal sensor with 640×480 resolution ensures crisp, clear images. Choose from a 24mm, 35mm, or 60mm lens.  A new USB-C port connects external power supplies and video recorders. REAP-IR 3 is built in USA to MIL-STD-810G.

Starts at: $7,209.00$5,219.00


Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

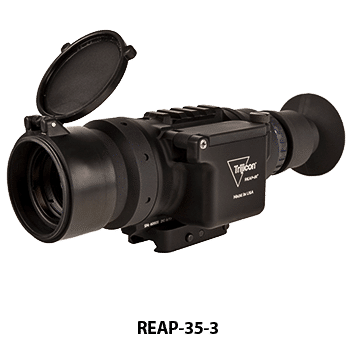

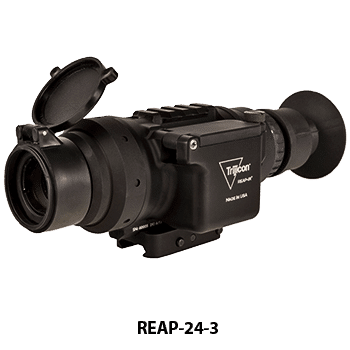

Trijicon’s REAP-IR® 3 is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital thumbstick improve system response and enables the use of external USB power sources and digital video recorders. It’s engineered to last and built in the USA.

Features and Benefits

Three models with three different lenses (24mm, 35 mm, 60mm). Choose the combination of field-of-view and magnification that works best for you.

Trijicon REAP-IR 3

Faster System Control. New and improved digital thumbstick provides improved
system response.

Expanded Functionality. New USB-C connector allows the use of external battery packs, and download of analog and digital video with available adapter for compatible DVRs.

Premium Image Quality. 640x480 resolution delivers 4 times as many pixels as competing 320 systems. 12 micron pixel pitch brings a smaller footprint than competing 17 micron systems. 60 Hz Frame rate improves clarity for moving images. New manual focus adjustment (60mm only) for improved image quality at all distances.

Advanced Polarity Control. Choose from various degrees of Black Hot, White Hot, and Edge Detect to improve image quality further.

Trijicon REAP-IR 3

Vertical Battery Compartment Design. This vertical design creates a slimmer look and is engineered for increased durability and solid battery connection.

Improved Battery Compartment Design. Redesigned internal battery compartment for a slimmer look and increased durability.

Mounting Versatility. New quick release mount featuring Trijicon® Q-LOC™ Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark.

Improved Reticle Choices. User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC.

Trijicon REAP-IR 3

Exhaustive Testing. Trijicon products are subjected to these testing methods:

  • Alaska-to-Africa Tested
  • Immersion Tested
  • Solid Zero Tested
  • Vibration Tested
  • Drop Tested

Legendary Trijicon Durability. Designed, constructed, and tested to MIL-STD-810G. Made in the USA.

Model REAP-24-3 REAP-35-3 REAP-60-3
UPC 719307802643 719307802636 719307802629
Sensor Type Vox Vanadium Oxide
Sensor Resolution 640×480
Sensor Micron 12 μm
Spectal Response 8-12 μm
Thermal Sensitivity < 50 mK
Frame Rate 60 Hz
Display Type Digital OLED
Field of View (FOV) 18° 12°
Eye Relief 27mm
Diopter -6 /+2
Optical Magnification 1.2x 1.75x 3x
Digital Zoom 1-8x
Combined Magnification 1.2-9.6x 1.75-14x 3-24x
Objective Lens 24mm f/1.2 35mm f/1.2 60mm f/1.25
Battery Pack Top Loading / Vertical
Battery Type (2) CR123 and/or External USB
Battery Life Approx. 4 hrs using (2) CR123
Environmental -25.6°F (-32°C) to 122°F (50°C) Operating
-59.8°F (-51°C) to 160°F (71°C) Storage
Submersion 1m / 1 hr
Weight 24.7 oz / 728g 26.5 oz / 751g 37.8 oz / 1071g
Dimensions (LxWxH) 8.4 in. x 3.1 in. x 2.9 in.
(214.1mm x 79.3mm x 73.1mm)
8.6 in. x 3.1 in. x 2.9 in.
(220.4mm x 79.3mm x 73.1mm)
9.7 in. x 3.1 in. x 2.9 in.
(247.6mm x 79.3mm x 73.1mm)
Length does not include flip caps, width does not include mount knob, height from top of rail.
User Interface Joystick
Mounting Kit Mini Picatinny Rail Mount
Easy Zero Yes
Image Capture Yes
*Disclaimer: Specifications are subject to change without notice.

You may also like…

  • Trijicon Electro Optics Battery Extender

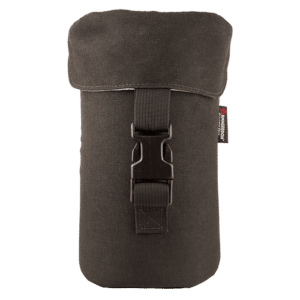

  • Trijicon REAP-IR / SNIPE-IR Compact Carrying Case (Black)
