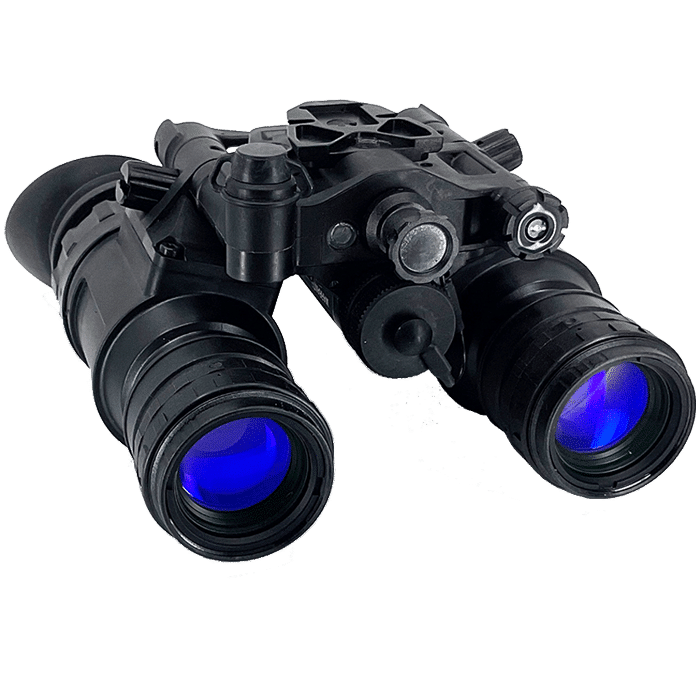

AN/PVS-31D (F5032)
White Phosphor Dual Tube Goggle 2400+ FOM Min.

The AN/PVS-31D (F5032) night vision binocular provides improved operational performance and situational awareness. Engineered with close-focus technology, and an integrated IR illuminator, the AN/PVS-31D (F5032) night vision binocular delivers a tactical advantage in low-light and no-light scenarios.



In stock

Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

The AN/PVS-31D (F5032) is a clear, close focus, superior performance tactical NVG. Users can maintain their cover while performing critical, up-close tasks—as near as nine inches—with more clarity than standard night vision goggles. An automatic vertical viewing system recognizes when the binocular is in use and prevents shut-off from activating when a user tilts their head to look up. An auto shut-off functions only when the goggles are in the stowed position.

Key Features & Benefits

  • Gen III 2400+ FOM Minimum White Phosphor Tubes (Auto-Gated)
  • Industry-leading, close-focus technology
  • Articulating housing design
  • Vertical viewing ability
  • Adjustable diopter lenses to minimize eye strain
  • Integrated IR illuminator
  • Adjustable Gain Control
  • Submersible up to 20 meters
  • Single, self-contained AA battery with an alert when running low
UPC 5032285560-1
Magnification 1X
System Distortion <3%
Field of View 40°± 2°
System Focus 25 cm to Infinity
Resolution ≥ 1.3 cyc/mrad
Collimation 1° convergence
0.3° dipvergence/divergence
Diopter Adjustment Lenses** +2 to -2.5
Battery One AA size battery
Battery Life @23° C without IR on > 24 hours with AA Lithium
> 15 hours with AA Alkaline
Integrated IR Illuminator Yes
Automatic High Light Cut-off System to Protect Image Intensifier Tube Yes
Internal LED Indicators for IR ON and Low Battery
Mechanical Adjustments
lnterpupilary Adjustment 52 to 75 mm
Flip-Up Function Binocular is automatically switched off when in the flip-up position
Independent Monocular Flip-out Stow Yes
Environmental Complies with MIL-STD-810
Weight* Less than 500 gm
Width 8.0 in.
Height 6.0 in.
Depth 6.0 in.
Warranty 2-year limited factory warranty

*Fixed diopter lens configuration without variable gain control
**Fixed diopter lens configuration
