P&R Infrared
Voyage LRF
Thermal/CMOS Fusion Binoculars

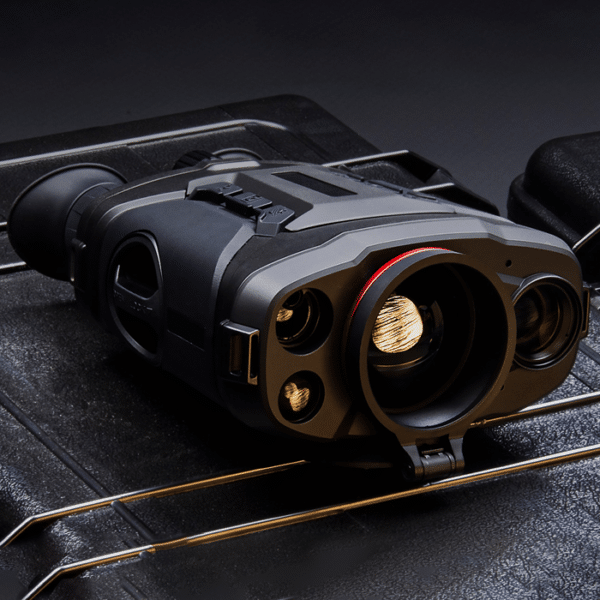

AGM Voyage LRF Fusion Binoculars combine advanced thermal imaging with digital day/night vision to detect and recognize human size heat signatures up to 1.6 or 2 miles away (depending on model), while foliage and other background are visually crisp and detailed at closer distances. Voyage binoculars have an integrated laser rangefinder and many other technologically advanced features. Battery operation is up to 8 hours in a wide array of adverse environmental conditions.

Starts at: $3,995.00


Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

Voyage binoculars deliver thermal imaging, visible imaging, and fusion imaging (a combination of thermal and visible). A highly sensitivity 12 μm infrared thermal sensor (NETD < 20 mK) detects heat signatures in complete darkness and in smoke, fog, rain, and snow. The 2560x1440 ultra-low light CMOS optical detector provides crisp and clear target recognition with minimal light. The 1024×768 OLED display is enhanced by Digital Detail Enhancement (DDE), optical magnification with digital zoom, a wide selection of viewing palettes, picture-in-picture, and a large field of view.

The user-friendly interface of the Voyage and ergonomic buttons make operation intuitive and simple. The Voyage is also equipped with a number of key features for target detection and location, including a built-in laser rangefinder, GPS module, electronic compass, inclination sensor, and 850nm IR illuminator. 64GB of video and photos can be captured in 64GB of internal storage and transferred via built-in Wi-Fi or USB-C cable.

Three 18650 rechargeable lithium batteries provide 8 hours of operation, and an integrated proximity sensor saves energy. External power can be delivered through the USB-C port. The IP67 waterproof housing ensures dependable performance in harsh weather, and the Voyage is backed by AGM’s 5-year transferrable warranty. A complete selection of accessories, including a hard carrying case and neck strap, comes with the Voyage (see list below).

Key Features

  • Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
  • Selection of thermal view channel, visible light channel, or both combined
  • Thermal resolution: 384x288 (TB50-384) or 640x512 (TB50-640 & TB75-640)
  • Optical resolution: 2560×1440
  • NETD less than 20 mK (25°C, F#=0.9)
  • Digital Detail Enhancement (DDE)
  • Dynamic Noise Reduction (3D DNR)
  • Adaptive Automatic Gain Control (AGC)
  • Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.2 , AGC On)
  • Video recording, replay, picture snapshot, and search (to review the event on device)
  • Wi-Fi hotspot
  • Eye-safe laser rangefinder (up to 1,000 m distance detection with ±1 m measuring accuracy)
  • GPS module
  • Digital magnetic compass
  • Inclination sensor
  • Proximity sensor to save power
  • Up to 8 hours continuous operation
  • IP67 Waterproof
  • Limited 5-Year Warranty

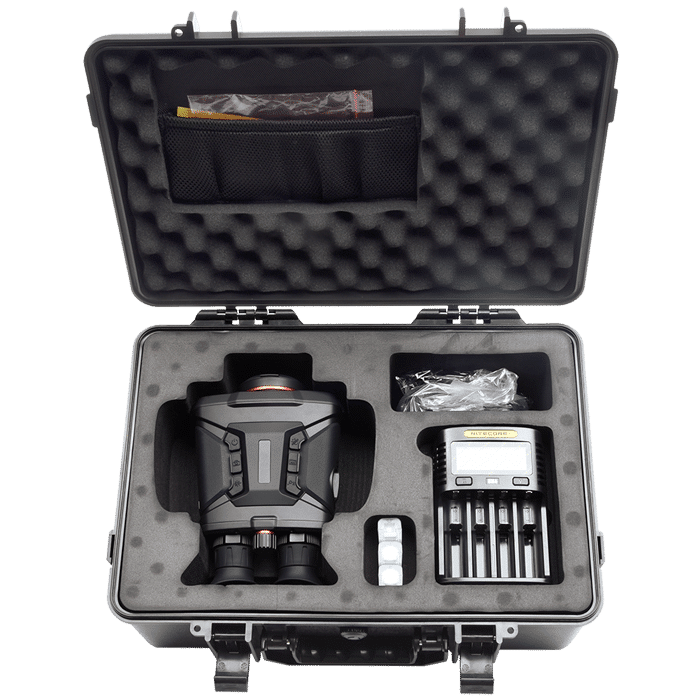

Package Includes

  • Battery Charge
  • Power Cable
  • Lens Cloth
  • Two Wrist Straps
  • Neck Strap
  • Six 18650 Batteries
  • Power Adapter
  • User Manual
  • Carrying Case

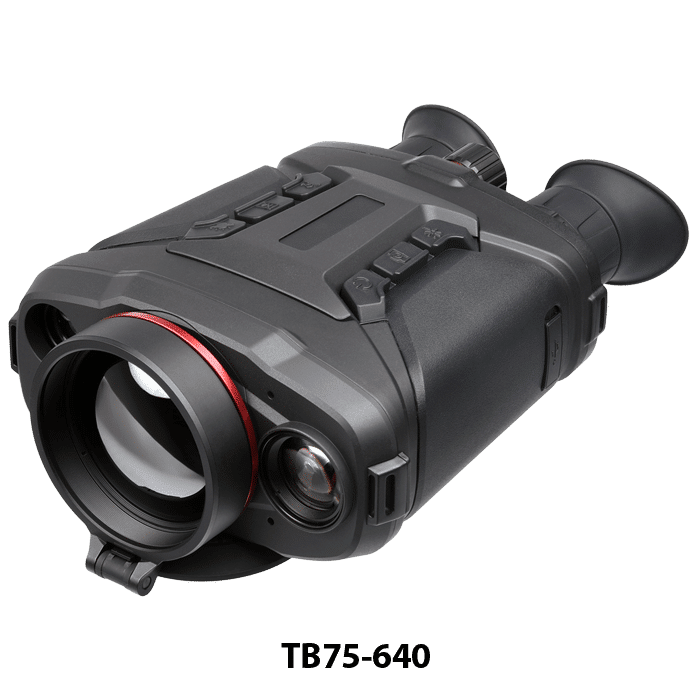

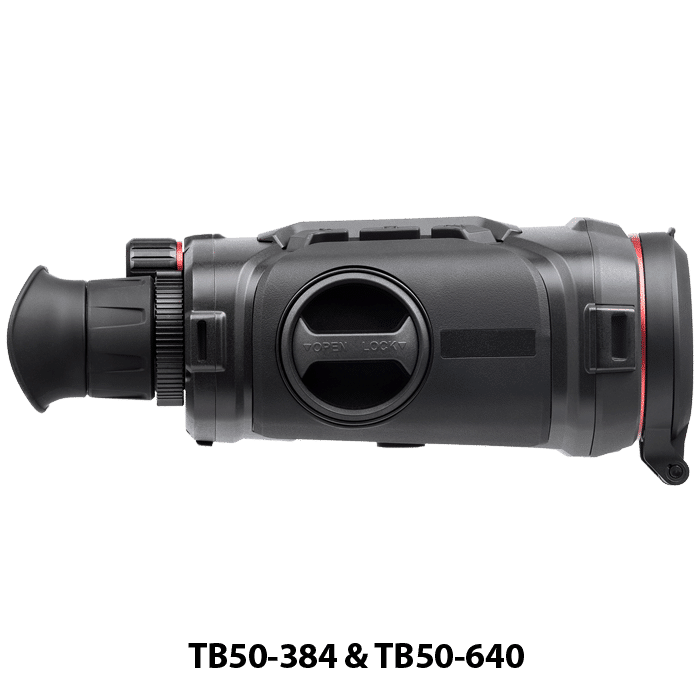

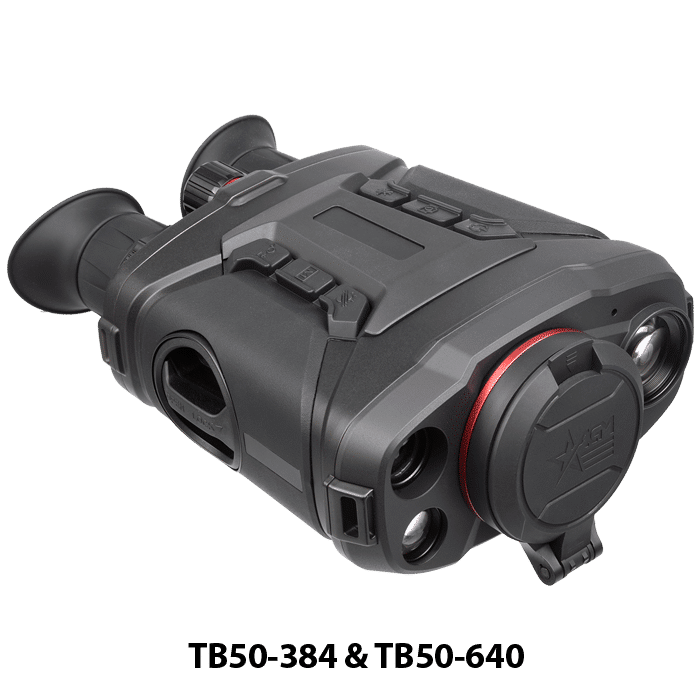

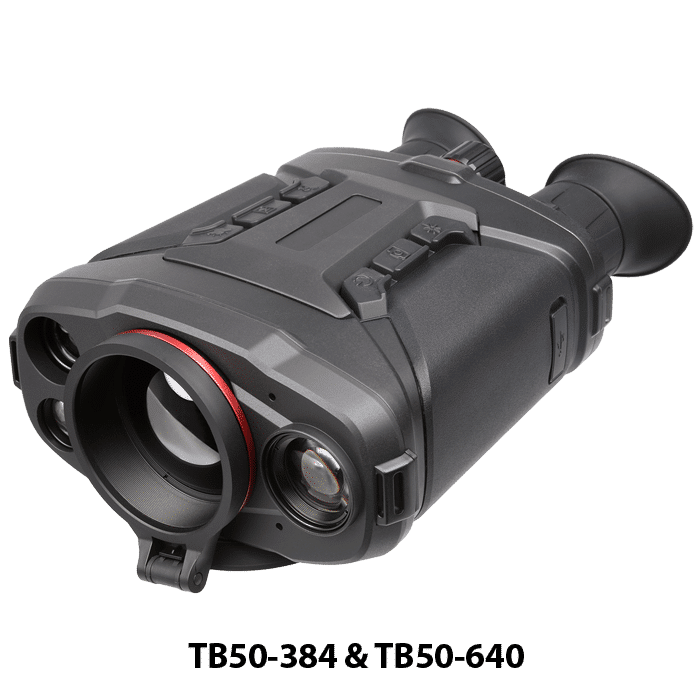

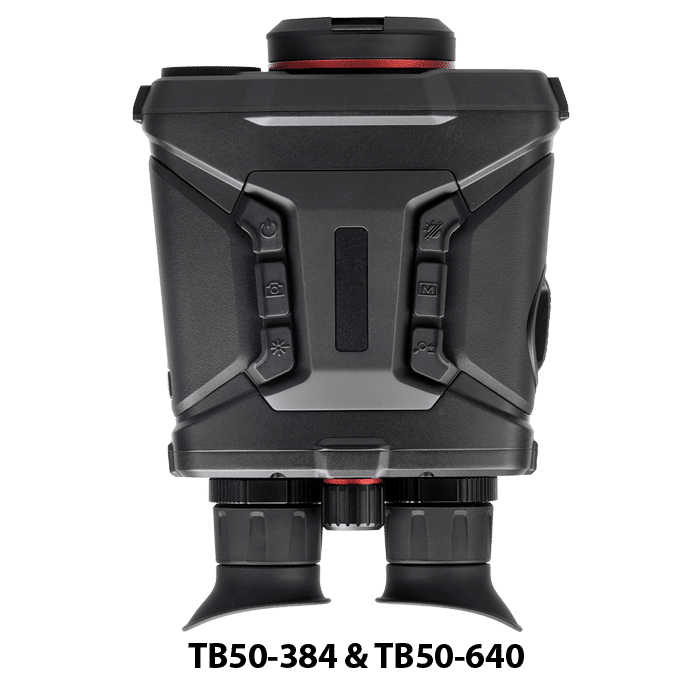

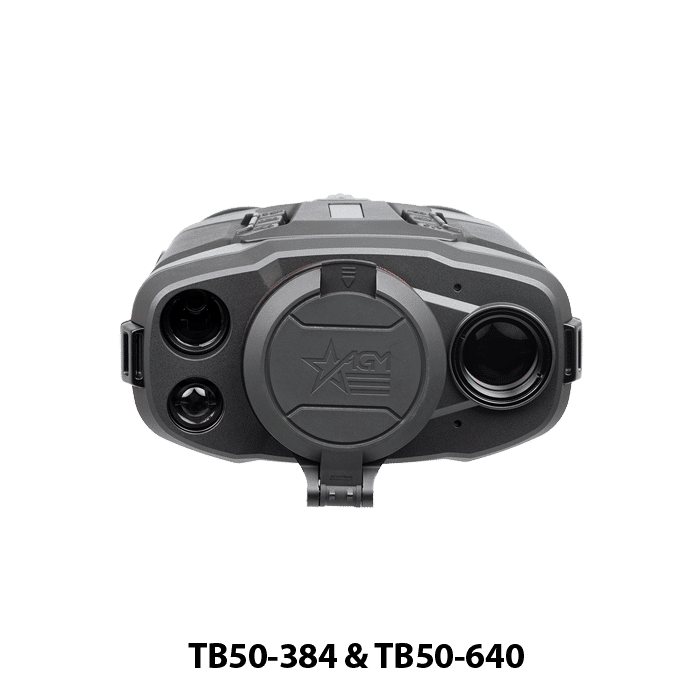

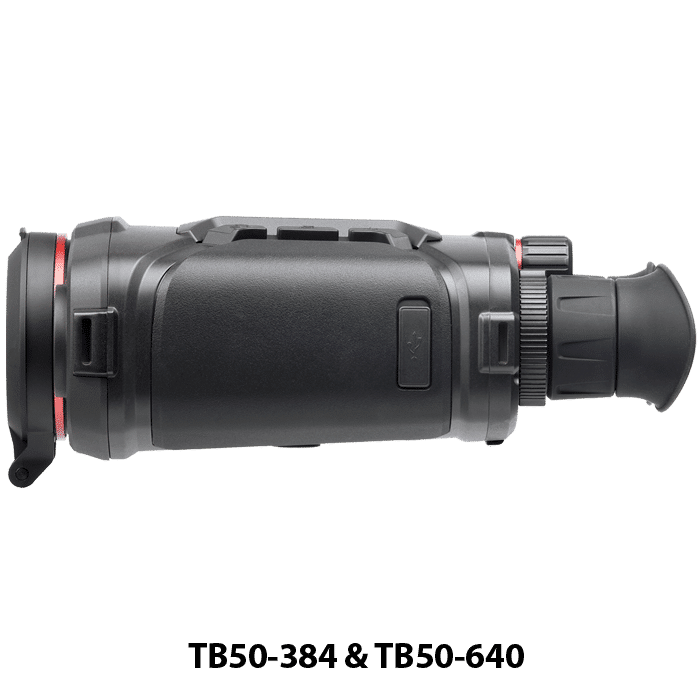

Model TB50-384 TB50-640 TB75-640
MPN 7142410005306V531 7142510005306V561 7142510005308V761
UPC 810027772473 810027772466 810027772459
Thermal Module
Thermal Sensor Vanadium Oxide Uncooled Focal Plane Array
Resolution 384×288 640×512 640×512
Pixel Pitch 12 μm
Refresh Rate 25 Hz
Response Waveband 8 μm to 14 μm
NETD ≤20 mK
Lens (Focal Length) 50 mm 50 mm 75 mm
Aperture F0.9 F0.9 F1.2
Focus Manual
Minimum Focus Distance 5 m 5 m 7.5 m
Magnification 5.5×–88× 3.5×–56× 5×–80×
Field of View 5.3° × 4.0° 8.7° × 7.0° 5.9° × 4.7°
Digital Zoom 1×, 2×, 4×, 8×, 16×
Detection Range (6’ object) 2600 yd 2600 yd 3600 yd
Optical Module
Max. Image Resolution 2560×1440
Image Sensor 1.88” Progressive Scan CMOS
Min. Illumination B/W : 0.001 lux @ (F1.2 , AGC On)
Lens (Focal Length) 31 mm
Aperture F1.2
IR Illuminator Built-in 850 nm Smart IR
Night Viewing Range 400 m/yd *
Display Type 0.39-inch, OLED, 1024×768, 50 FPS
Diopter Adjustment -5 to +3 dpt
Interpupillary Distance 60 mm to 70 mm
Eye Relief 15 mm
Palettes Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
Optical Mode Day, Night, Auto, Defog
Flat Field Correction Auto, Manual, External Correction
Picture In Picture Mode (PIP) Yes
Laser Rangefinder
Measuring Distance Max. 1,000 m
Accuracy ±1 m
Laser Wavelength 905 nm (Class 1)
System Capabilities
Storage 64 GB built-in memory module
Video Recording MP4, 1600×1200
Snapshot Capture JPEG, 1600×1200
Audio Recording Yes
Local Album Yes
Cable Output USB Type-C port
Wi-Fi Hotspot Yes
Digital Compass Yes
Hot Track Yes
Proximity Sensor Yes
Power Supply
Battery Type Three 18650 batteries
Battery Operating Time Up to 8 hours
Battery Capacity Display Yes
External Power Supply DC 5V/2A, Max.10W, Type-C port
Standby Mode Yes
Physical & Environmental
Mount 1/4”-20 UNC
Working Temperature -30°C to 55°C (-22°F to 131°F)
Storage Temperature (w/o batteries) -40°C to 70°C (-40°F to 158°F)
Working Humidity < 90%
Protection Level IP67
Dimensions (L×W×H) 217 × 155 × 88 mm
(8.5 × 6.1 × 3.5 in)
217 × 155 × 88 mm
(8.5 × 6.1 × 3.5 in)
230 × 155 × 88 mm
(9.0 × 8.65 × 3.5 in)
Weight 1.12 kg ( 2.5 lb) 1.12 kg ( 2.5 lb) 1.45 kg ( 3.2 lb)
