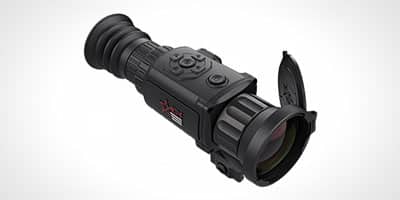

AGM Rattler TS
Thermal Imaging Riflescopes
These waterproof and shockproof thermal riflescopes also work as handheld monoculars and have a 4.5 hour battery life. Choose from 25 or 35 mm lenses with a 384×288 17 µm thermal sensor, or 35 or 50 mm lenses with a 640×512 12 µm (35 mK NETD) sensor. Other features include: 50 Hz frame rate, advanced image processing, 1024×768 OLED display, 8x digital zoom, 16GB of images/video, and Wi-Fi streaming/recording.
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >
The AGM Rattler thermal imaging riflescopes are designed for 24-hour operation under any kind of weather and environmental conditions.
- For short range shooting, consider the TS25-384 with a 25 mm lens and detection range up to 880 m.
- For medium range shooting, consider the TS35-384 with a 35 mm lens and detection range up to 1235 m.
- For medium/long range shooting, consider the TS35-640 with a 50 mm lens, 640×480 resolution, and detection range up to 1750 m.
- For long range shooting, consider the TS50-640 with 50 mm lens, 640×480 resolution, and detection range up to 2500 m.
All Rattler TS riflescopes feature advanced image processing, 50 Hz frame rate for smooth motion, multiple color palettes and reticles, stepped 8x digital zoom, 1024×768 OLED display, and picture-in-picture. Together with the advanced thermal sensor, these capabilities provide clear images under harsh conditions, including darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. Rattler TS can also be used as a handheld monocular for patrolling, hunting, and other off-weapon scenarios.
Rattler TS riflescopes incorporate 16GB of storage for recording video and images, and onboard Wi-Fi provides connectivity for live video streaming via an available app. Powered with two CR123 batteries, the sights deliver up to 4.5 hours of continuous operation. An external 5V power bank (battery pack) can be connected via USB to significantly extend operating time.
AGM Rattler TS Features
- 384×288 (17µm) or 640×512 (12µm, 35 mK NETD) high sensitivity detector
- Germanium 25, 35, or 50 mm objective lens
- Advanced image processing: Adaptive AGC, DDE, 3D DNR
- 50 Hz refresh rate
- 1024 × 768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Various reticle types and colors
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Standby mode
- Waterproof, shockproof
- Up to 4.5 hours continuous operation
- External power supply capability
- Limited 3-year warranty
AGM Rattler TS Package Includes
Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
AGM Rattler TS Accessories
AGM Power Bank
PART NO.: 6308APB1
1000 mAh. Includes carrying case, USB-C cable, micro USB cable.
The quick release weapon mounts listed below attach to the thermal scope to any Picatinny or Weaver rail system without the use of additional tools or throw levers. Sturdy lightweight aluminum construction. Easy-to-use adjustable brackets with torque preset.
ADM 2112 Short QR Mount for Rattler TS TS25/35.
PART NO.: 6306SMR1
$156.00
ADM 2111 Long QR Mount for Rattler TS 25/35/50.
PART NO.: 6306LMR1
$188.00
AGM Rattler TS Specifications

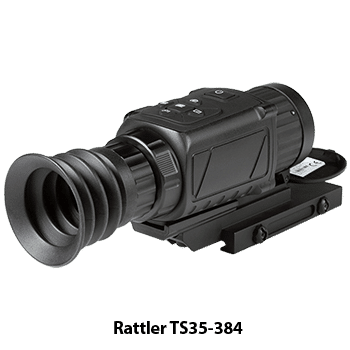

Model | TS25-384 | TS35-384 |
---|---|---|
Detection Range | Max. 882 m | Max. 1235 m |
Shock and vibration | 750 g/ms | |
Detector type | 17μm, uncooled VOx | |
Resolution | 384×288 | |
Refresh rate | 50 Hz | |
Lens system | 25 mm; F/1.0 | 35 mm; F/1.0 |
Optical magnification | 1.5x | 2.14x |
Field of view (H × X) | 14.9° x 11.2° | 10.0° x 8.0° |
Digital zoom | 2x, 4x, 8x | |
Eye relief | 45 mm | |
Display | 0.39-inch OLED 1024 × 768 | |
Picture-in-Picture (PIP) | Yes | |
Imaging palettes | Jungle, Recognition | |
Snapshot | Yes | |
Record video | Yes | |
Storage | Built-in EMMC (16 GB) | |
Standby Mode | Yes | |
Battery Type | Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries | |
Wi-Fi | Yes | |
Battery Life (Operating) | Up to 4.5 hr | |
External power supply | 5V USB | |
Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) | |
Degree of Protection | IP67 | |
Weight | 0.41 kg (0.91 lb) | 0.511 kg (1.13 lb) |
Overall Dimensions | 187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in) | 226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in) |
Model | TS35-640 | TS50-640 |
---|---|---|
Detection Range | 1750 m | 2500 m |
Detector | 12μm, 35 mK NETD, Uncooled | |
Resolution | 640 × 512 | |
Refresh rate | 50 Hz | |
Lens system | 35 mm; F/1.0 | 50 mm; F/1.0 |
Magnification | 2x – 16x | 2.5x – 20x |
Optical magnification | 2x | 2.5x |
Field of view (H × X) | 12.5° × 10.0° | 8.8° × 7.0° |
Digital zoom | 1x, 2x, 4x, 8x | |
Eye relief | 45 mm | |
Display | 0.39-inch, OLED, 1024 x 768, 50 Hz | |
Reticle | 5 types, 4 colors, on/off | |
Boresight Adjustment | Digital Controlled | |
Boresight Increment | 0.21 mil / 0.73 MOA | 0.15 mil / 0.51 MOA |
Distance Measurement | Yes (Stadiametric Rangefinder) | |
Palettes | Black Hot, White Hot, Red Hot, Fusion | |
Scene Mode | Jungle, Recognition | |
Picture In Picture Mode (PIP) | Yes (2× Zoom) | |
Hotspot | Yes | |
Standby Mode | Yes | |
Video Recording | Yes | |
Picture Snapshot | Yes | |
CVBS Output | Yes (via USB) | |
Wi-Fi | Yes | |
Defective Pixels Correction (DPC) | Yes | |
Uniformity Correction | Auto, Manual, External Correction | |
Storage | Built-in EMMC (16 GB) | |
Battery Type | Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable | |
Battery Life (Operating, 20°C) | Up to 4.5 hr | |
External power supply | 5 VDC/2 A, USB Type-C Interface | |
Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) | |
Degree of Protection | IP67 | |
Drop Test Height | 1.5m (4.9 feet) | |
Weight (w/o battery) | 535 g (1.18 lb) | 605 g (1.33 lb) |
Overall Dimensions | 187× 63 × 80 mm (7.4 × 2.5 × 3.1 in) | 200 x 73 x 84 mm (7.8 × 2.9 × 3.3 in) |
