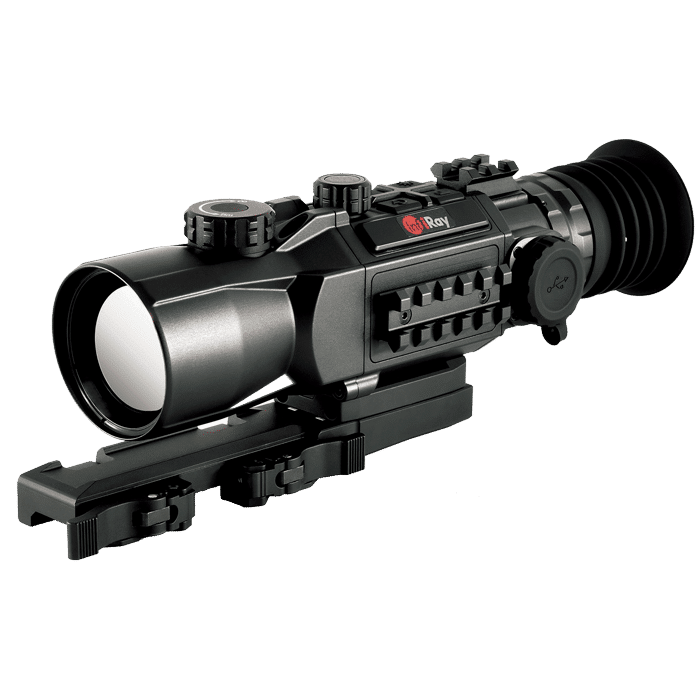

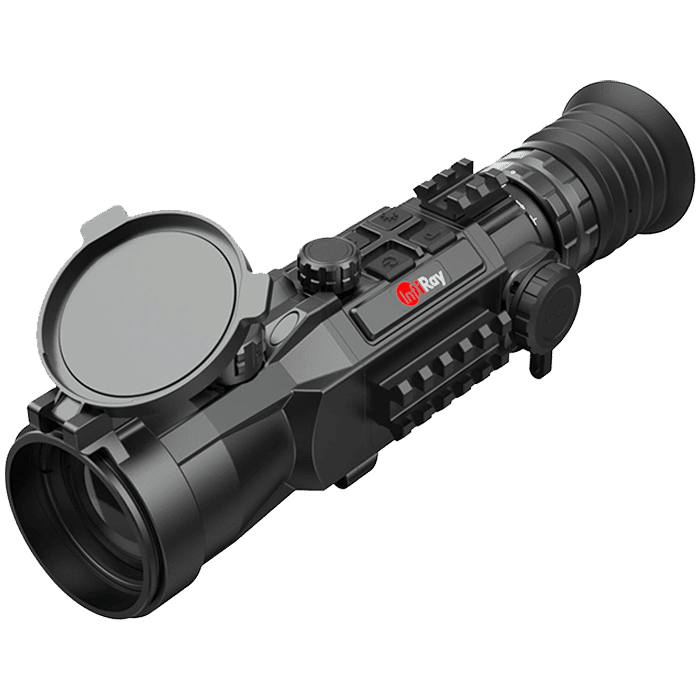

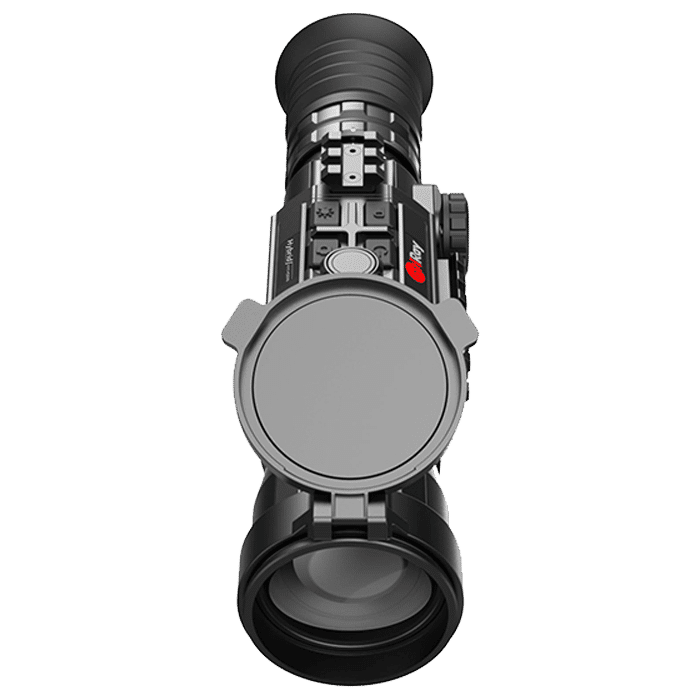

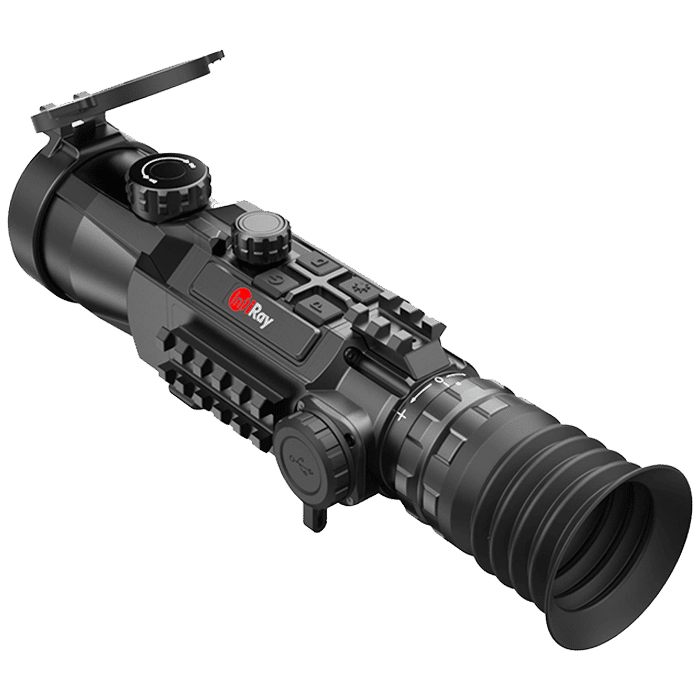

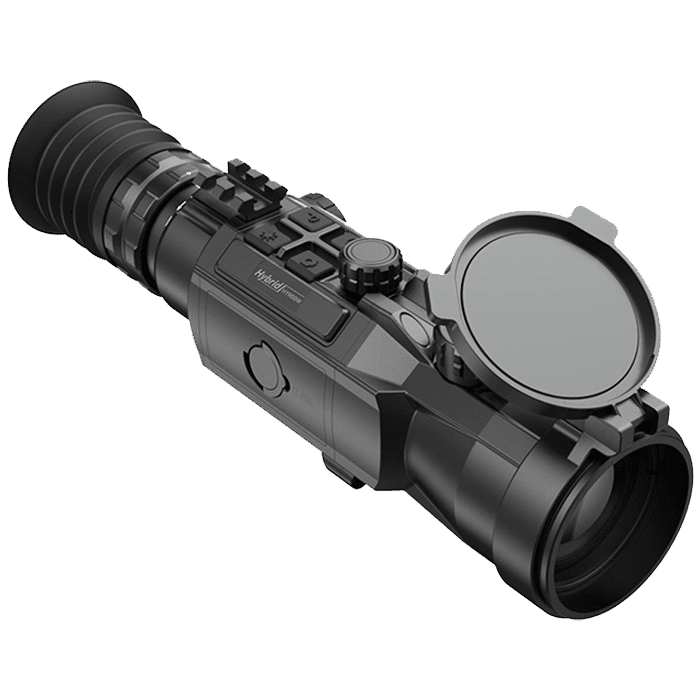

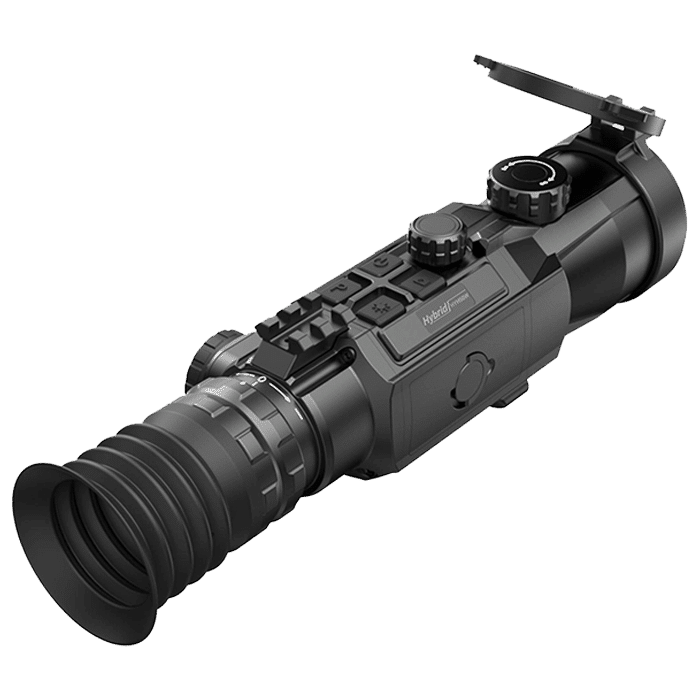

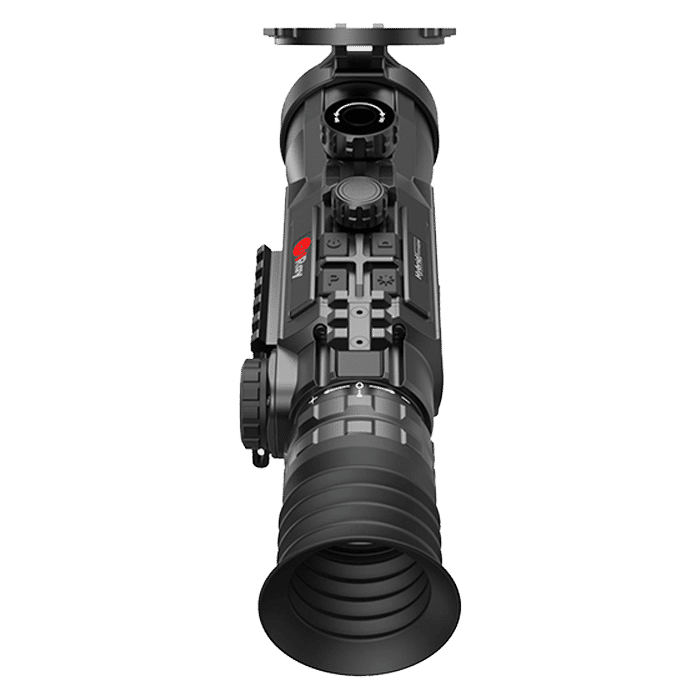

RICO HYBRID
Dual Mode Thermal Weapon Sight

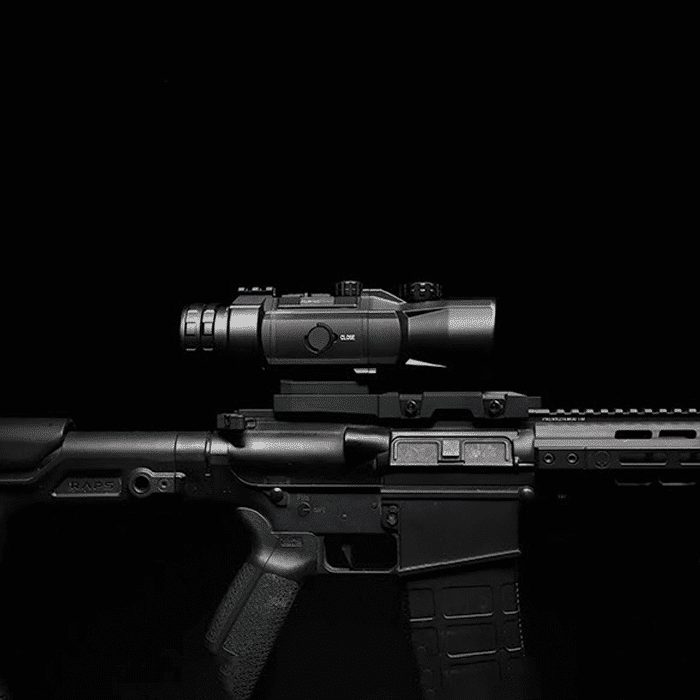

Advancements in the resolution and pixel density of thermal sensors and ultra-HD micro displays have led to this hybrid thermal weapon sight. The RICO HYBRID works either as a dedicated thermal weapon sight or as a thermal clip-on, and the modes can be switched in seconds without changing the eyepiece. Detection range is 2400 yards, and features include an optional laser rangefinder, ballistic solver, video/image recording, Wi-Fi connectivity, and more.

Starts at: $5,999.00

-

Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

Photo showing an Infiray Outdoor RICO HYBRID with a list of all the callouts and features.

2,400 Yard Detection Range

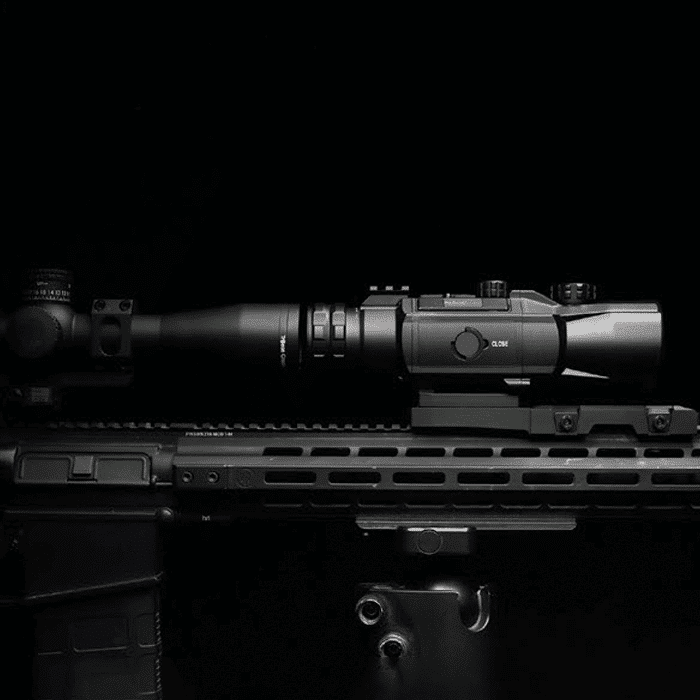

HYBRID sights offer unprecedented versatility and a detection range of 2,400 yards, either as a dedicated thermal sight or an inline clip-on sight for day optics up to 10x.

Optional Laser Precision

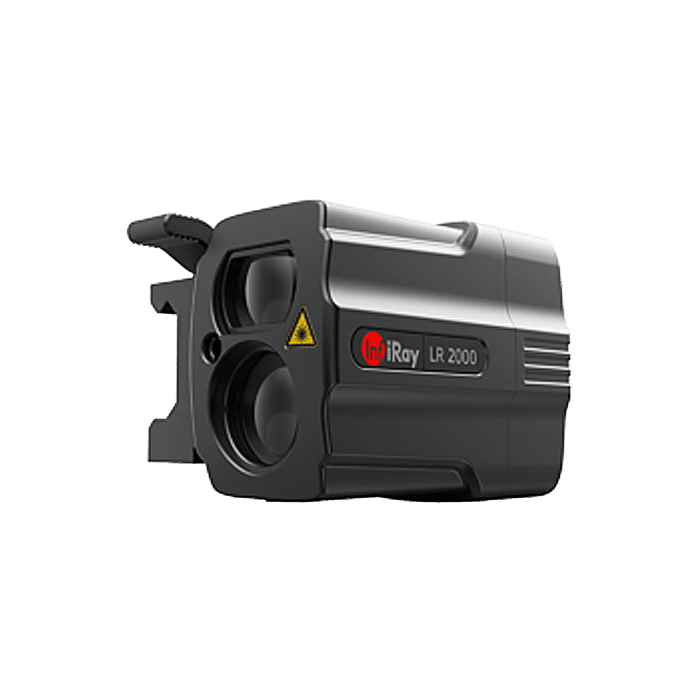

HYBRID sights support an optional external laser range finder, the ILR-2000, to generate accurate aiming points through automatic ballistic calculation of rangefinding results. The accuracy of HYBRID can reach ±1MOA.

Ballistic Solver
HYBRID sights support ballistic calculation via a user-uploaded .xlsx file. Users calculate ballistics with their preferred software, then export and upload their trajectory in 5 meter increments. Once a ballistic profile loaded is loaded, and an ILR-2000 laser rangefinder (optional) can be plugged in and the HYBRID calculates drop and displays a second reticle in split second.

Ultra Clear Display
A low-distortion, orthoscopic eyepiece is paired with a high resolution, high contrast 1.03-inch 2560x1920 UHD AMOLED display for an extra large image with edge to edge clarity. Pixel density and and resolution are maintained in both dedicated and clip-on modes. The display also features low power consumption to help extend runtime.

Recoil-Activated Video
HYBRID sights add a recoil-activated video function to lock the 30-second clips before and after shooting so that no wonderful moments are missed. Both video and audio is recorded. Images and videos can be played back within the HYBRID sight or can be transmitted to smart devices through Wi-Fi.

Recoil-Absorbing Mount
A patented recoil-absorbing mount and new assembly process help HYBRID sights pass a rigorous reliability test. There is no movement from the zero position after more than 20,000 shots of 1200g impact. HYBRID sights are suitable for long-term use of a gun that is chambered for a 7.62×39mm cartridge.

Extra Large Eyebox/Long Eye Relief
The larger eyebox makes it easy to see clear images in dynamic situations. The 60 mm long eye relief avoids potential eye injury from the recoil of shooting.

Waterproof & Dust Proof
HYBRID sights are waterproof (IP67) and dust proof and operate over a wide temperature range (-4° F to 122° F), so they continue to operate flawlessly in adverse conditions.

General
MPN HYH50W HYH35W
UPC 850029093961 850029093961
Sensor
Device Technology Thermal Imaging
Sensor InfiRay Micro II 640
Sensor Resolution 640×512 pixels
Sensor Pixel Size 12μm
Thermal Sensitivity ≤25 mK
Spectral Response 8–12 Microns
Sensor Frame Rate 50 Hz
Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
Image Processing MATRIX III
Optics
Detection Range 2400 Yards 1750 Yards
Objective Lens 50 mm f/1.0 35 mm f/0.9
Objective Lens Material Germanium
Optical Magnification 3x 2x
Digital Zoom 8X, stepped
Focusing Mechanism Manual Focus
Field of View 8.8° × 6.6° 12.6° × 9.4°
Eye Relief 60mm
Diopter Range -4 – +2
Display
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560×1920
Color Palettes White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Reticle Types 8 (7 Static, 1 Custom BDC Reticle)
Reticle Colors Black, White, Red, Green, Blue
Picture-in-Picture Yes
One-Shot Zero Yes
Rangefinder
Laser ILR-2000 LRF (Optional/Not Included)
Recording/Connectivity/Power
Onboard Recording Video, Recoil-Activated Video, and Image
Storage Capacity 64GB
Video Output Analog RS-170/NTSC
Wi-Fi Connectivity Image and Video via App
User Updatable Firmware Yes
Data/Power Connector USB-C
Power Source IBP-1 Li-ion Battery Pack (6+ Hours)
External Power Source IBP-1 Li-ion Battery Pack (6+ Hours)
Start Up Time <10 Seconds, Instant from Standby
Physical & Environmental
Mounting Interface Picatinny STD-1913 rail
Recoil Rating 1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range -4°F to 122°F
Housing Material Aluminum
Ingress Protection IP67
Size 11.02” × 3.03” × 2.99” 10.51” × 3.03” × 2.99”
Weight 40.5 Oz 40.0 Oz
Warranty 5 Years
