P&R Infrared
Thermal Scopes

HALO-X combines a state-of-the-art BAE thermal imaging core with high end features demanded by customers. These include onboard video recording, Wi-Fi connectivity, and with HALO-XRF, an integrated laser rangefinder. HALO-X is proudly designed and built in the U.S., making it the ultimate U.S.-made thermal scope available to the hunting market.

Starts at: $7,495.00


Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

N-Vision HALO-X Features & Benefits

640x480 Resolution BAE Thermal Core
HALO-X Thermal Scopes are built around a high end BAE thermal sensor with sharp 640x480 resolution, 12 micron architecture, and a 60 Hz refresh rate for smooth motion.

35 mm or 50 mm F1.1 Germanium Objective Lens
Choose between two different objective lenses. The 35 mm lens offers a wider field of view, while the 50 mm lens offers a greater detection range.

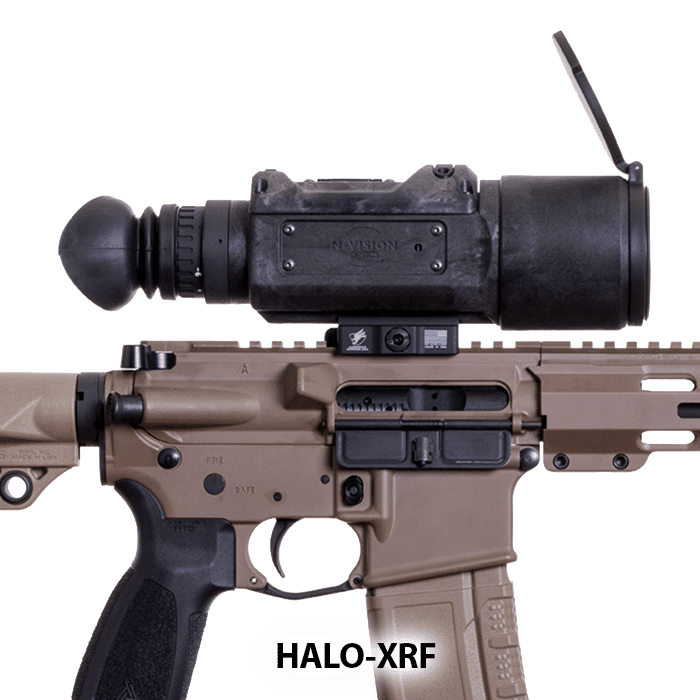

Built-in Laser Range Finder (XRF Only)
HALO-XRF features a built-in laser range finder with a range of up to 1,000 yards/meters.

Built-in Video and Audio Recording
HALO-X eliminates the need for external recorders. Pixel accurate 60 Hz videos are internally captured and stored for later transfer to the user’s PC via USB connection.

Wi-Fi Streaming
The streaming feature permits the user to stream videos over the Wi-Fi connection and possibly broadcast the hunts in real-time to Youtube, Facebook, or other social media that may allow it.

Zoom Sensitive Zeroing
Reticle movement steps are zoom dependent, which allows for the most precise zeroing.

8 Reticle Options
Choose from eight reticles, including two Mil Dot reticles.

USB-C Connection
A standard USB-C type cable is used for user software updates, downloading videos and still images, or powering up the HALO-XRF with an external 5V (USB) power source.

Rechargeable 18650 Batteries
HALO-X operates on two rechargeable 18650 batteries, providing up to 7 hours of run time (at room temperature).

HALO-X Instructional Videos

Resolution 640 x 480
Sensor Pitch 12µm
Refresh Rate 60 Hz
Lens 35mm F1.1 50mm F1.1 50mm F1.1
Focus Fixed
Digital Zoom 1x/2x/4x/8x
Magnification 2.5x 3.5x 3.5x
Display Type OLED, 640×480, B&W
Power 18650 batteries (2)
Remote Power USB, 5.0V
External Connector Waterproof USB-C
Calibration (NUC) Manual
Detection Range 1,491 yards 2020 yards 2020 yards
Recognition Range 524 yards 725 yards 725 yards
Identification Range 270 yards 380 yards 380 yards
Weight 32.5 oz 37 oz 41.5 oz
Size 8.6 x 3.6 x 3.4 inches 8.6 x 3.6 x 3.4 inches 8.9 x 4.1 x 3.4 inches

Specifications are subject to change without notice.

You may also like…

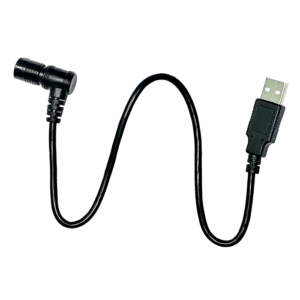

  • N-Vision HALO / ATLAS USB Cable

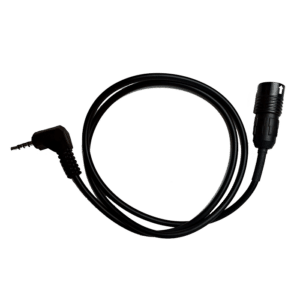

  • N-Vision HALO DVR Cable
