ZEISS DTI 3/35
Thermal Imaging Camera
The ZEISS DTI 3/35 was developed by hunters, for hunters! Featuring ErgoControl design for intuitive one-handed operation, this thermal camera captures detailed images over long distances. Photos and videos can be live streamed to smart devices. Features include a 50 Hz frame rate, digital and optical zoom, four color modes, picture-in-picture, and hot tracking.
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >
Whether for wildlife observation and tracking or for faster and more precise identification, the innovative technology of the ZEISS DTI 3/35 offers hunters a considerable advantage in the forest and in the field at night, especially when it comes to hunting wild boars. Heat sources can be reliably detected over large distances of up to 1235 m (1350 yd). With the ErgoControl operating system, every function can be controlled intuitively. The high resolution HD-LCOS display, combined with 0.5 zoom increments, provides detailed images for reliable identification.
Features & Benefits
- Up to 1,350 yards detection range
- Extremely comfortable and lightweight
- Wider field of view
- Outstanding image quality
- Truly ambidextrous design
- Easy access and intuitive controls
- Pronounced controls for gloved hands
- Oval ocular for comfortable viewing and immediate target acquisition
- Rechargeable power source
ZEIS Quality Optics
The ZEISS DTI 3/35 thermal imaging camera offers outstanding optical performance thanks to the perfect interaction of sensor, electronics, display, and eyepiece. The high-resolution HD-LCOS display delivers detailed images for reliable spotting. After all, the difference between a boar and the lead sow often lies in the details. The wide field of view of 19m at 100m allows you to observe a much larger area providing you with the significant advantage in the forests and fields at night.

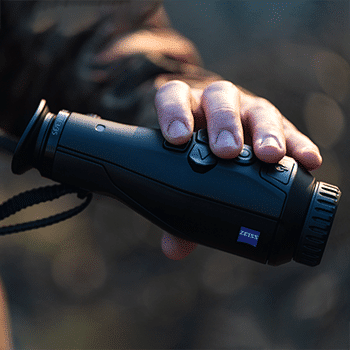

Stalking in the darkness requires a high level of attention. ZEISS developed the ErgoControl operating concept so the use of the optics does not cause any distractions. The triangular button layout in combination with the specific form factor of the keys of the ZEISS DTI 3/35 ensures a natural hand position, with the fingertips resting relaxed on the controls for one-handed operation with either hand. Thanks to the intelligent positioning of the buttons, each function can be controlled intuitively, even with gloves on!
High Precision Zoom
Identifying game in the darkness is much more difficult than during the day. A single wild boar is not necessarily a male. It could be a mother sow with her youngsters hiding in the tall grass or in the thicket. The ability to make the right decision in this situation makes all the difference. The ZEISS DTI 3/35 provides the perfect combination of magnification and detail recognition. With 0.5 zoom increments, you can quickly switch between the individual magnification levels.
Livestream via Hunting App
Nature behaves very differently in the dark than in the daylight. This means you can observe fascinating moments that are so unique, you want to save them and share them with others. Using the ZEISS Hunting App, hunters can transfer data from the DTI 3/35 directly to a smartphone via wireless LAN, making it simple to save, manage, and share photos and videos.
Versatile Color Modes
The ZEISS DTI 3/35 offers four different color modes, so you can choose the setting that best fits your needs. ‘Black hot’ and ‘white hot’ deliver images with a high level of contrast. These settings are great for detection, recognition, and identification. When observing in areas with vast vegetation, ‘red hot’ allows for a fast detection of heat signatures. ‘Rainbow’ mode is ideal for identifying the smallest differences intemperature.
High Frame Rate
The ZEISS DTI 3/35 features a display frame rate of 50 Hz for a smoother, flicker-free image, which great reduces eye strain when stalking for several hours at a time.
The picture-in-picture function of the ZEISS DTI 3/35 allows overlying the zoomed image on the visual image. This feature helps to keep sight of the animal you are observing in zoom mode, even when it makes sudden movements.
In ‘Hot Tracking’ mode, the warmest source in the image is framed with a red square. Finding heat sources in densely overgrown areas and tracking them is therefore easier.
2-Point Carrying Strap
The strap of the DTI 3/35 is attached to two connection points, similar to binoculars. As a result, the device can be lowered quickly and quietly when reaching for the weapon. You can also take the device back in your hand without looking, as it is securely placed around your neck, without dangling uncontrollably.
- Carrying case
- Carrying strap for case
- Carrying strap for camera
- USB charger
- USB cable
- Cleaning cloth
- Quick guide
- Product safety document
- Extended warranty card
ZEISS DTI 3/35 Specifications
|Focal length||35 mm|
|Range||1235 m (1350 yd)
(according to Johnson’s calculation method; as per requirement)
|Eyepiece field of view in °
(subjective field of view)
|Lens field of view in m at 100 m||Horizontal: 19 m (57 ft)|
|Lens side field of view in °
(horizontal × vertical)
|10.7° × 8° (diagonal 13.3 °)|
|Maximum digital zoom||4×|
|Zoom increments||1.0× – 4.0×
|Sensor resolution||384 × 288 px|
|Sensor pixel pitch||17 μm|
|Thermal sensitivity (NETD)||≤50mk|
|Image frequency||50 Hz|
|Display resolution||1280 × 960 px|
|Interfaces||USB: charging + data transfer
WLAN: data transfer
|Battery life||7 hours|
|External power supply||5 V/3 A, 9 V/2 A, 12 V/1.5 A (USB)|
|Internal memory||15 GB|
|Video & photo resolution||384 x 288|
|Lifestream function||Video & Photo|
|WLAN frequency||2.4 GHz|
|WLAN standard||IEEE 802.11b/g/n|
|Connection with other devices||ZEISS Hunting App or USB|
|Ingress protection rating||IP66 (Protected against heavy rain)|
|Operating temperature range||-10 °C up to +40 °C (+14 °F up to +104°F)|
|Length × width × height||193 mm × 60 mm × 65 mm (7.6 x 2.4 x 2.6″)|
|Weight||450 g (1.01 lbs)|
|Warranty||2 years (extendable to 3 years)|
