P&R Infrared
Digital Night Vision Weapon Sight

The BOLT TD50L is a high-performance digital night vision optic for the discerning hunter looking for classic aesthetics and excellent low-light sensitivity. The TD50L bridges the gap from daylight to low-light with its high definition sensor and multiple viewing modes. Powered by a dual-battery design with 10 hour run time and protected with an IP67 rating, the TD50L can last all night in any hunting conditions.

Original price was: $1,649.99.Current price is: $1,499.00.


In stock

Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

The TD50L is built around an ultra-sensitive, high definition sensor with a 600-yard viewing range. Functionality is taken even further with a number of advanced features:

  • 440x1080 CMOS HD sensor
  • 1280x960 LCOS HD display
  • Picture-in-picture mode
  • Continuous 4x–16x zoom
  • Manual focus f/1.2 lens
  • Six color palettes

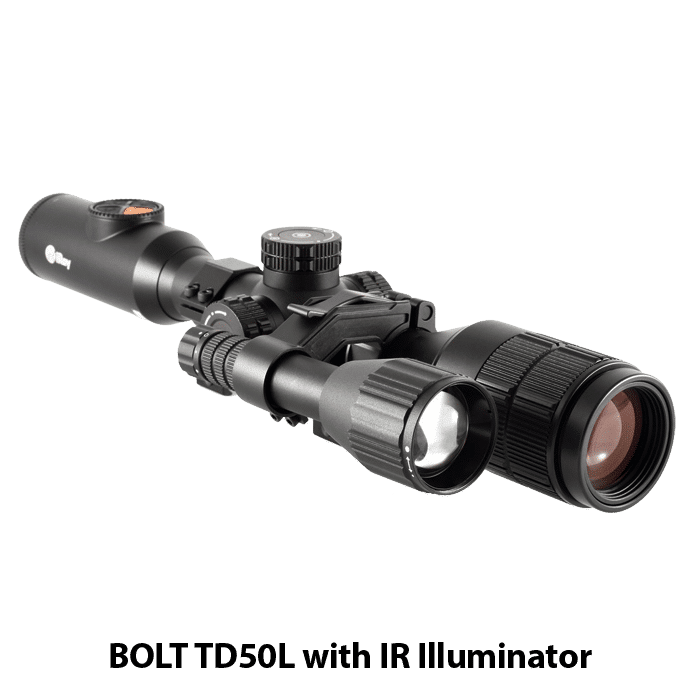

  • Optional external IR illuminator
  • 16 GB video and photos
  • USB-C & Wi-Fi connectivity
  • Mounts with standard 30 mm rings
  • Dual battery design
  • 10-hour runtime
  • IP67 rating
  • 5 year warranty

InfiRay Outdoor BOLT TD50L shown with various different feature callouts.

UPC 850029093855
Sensor Type CMOS
Sensor Resolution 1440×1080
Device Technology Digital Night Vision
Sensor Pixel Size 4µm
Sensor Frame Rate 50Hz
Detection Range 600 Yards
Objective Focal Length 50mm f/1.2
Objective Diameter 50mm
Objective Lens Material Glass
Focusing Mechanism Manual Focus
Optical Magnification 4x
Digital Magnification 4x, Stepped
Vertical Angular Field of View 4.9°
Horizontal Angular Field of View 6.6°
Diopter Range -4 to +4
Eye Relief 70mm
One-Shot Zero Yes
Display Type LCOS
Display Resolution 1280×960
Color Palettes Day Mode, Moon Mode, Star Mode
Reticle Types 6
Reticle Colors Black, White, Red, Green
Rangefinder Stadiametric
Picture-in-Picture Yes
Connectivity & Electronics
Onboard Recording Video and Image
Storage Capacity 16GB
Wi-Fi Connectivity Video and Image via app
User-Updatable Firmware Yes
Connector Type USB-C (Data/Power)
Power Supply USB-C External, Built-In Battery Pack (10 Hours), 18500 Battery (2+ Hours), 18650 Battery (3.5+ Hours)
Run Time 10 Hours
Startup Time < 10 Seconds, Instant from Standby
Physical & Environmental
Housing Material T-6061 Aluminum
Mounting Interface 30MM Rings (included)
Max. Recoil 1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range -4°F to 122°F
Ingress Protection IP67
Weight 35.27 Oz
Height 2.95 in.
Width 3.34 in.
Length 15.55 in.
Warranty 5 Years

Specifications are subject to change without notice.
