P&R Infrared
Varmint LRF
Thermal Weapon Sights

Choose from two resolutions and two objective lenses. Detection range is up to 1350 yards (50mm lens). A laser rangefinder is built-in. A 50 Hz frame rate, advanced image processing, and 8x digital zoom deliver clear images in all conditions to the 1024×768 OLED display. Record up to 16 GB of video or stream via Wi-Fi. Waterproof and shockproof, the Varmint LRF also works as a handheld monocular and has a 4 hour battery life.

Starts at: $2,495.00


Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

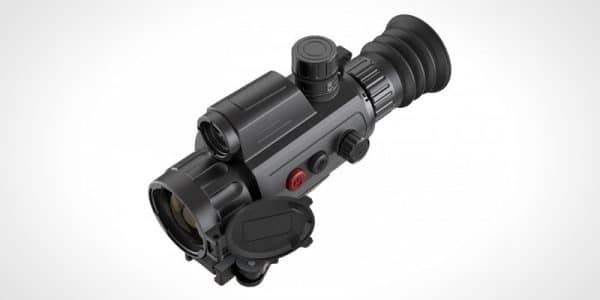

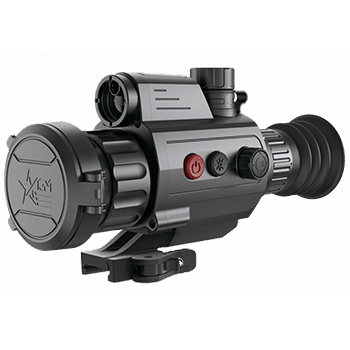

The Varmint LRF is a compact thermal imaging scope developed for 24-hour operation under any weather and environmental conditions. Available in multiple configurations: 384x288 (50 Hz) thermal detector or 640x512 (50 Hz) thermal detector, and 35mm or 50mm objective lens. These options allow the customer to choose the perfect unit for their needs. The 35mm lens is designed for medium-range applications, while the 50mm lens will be better suited for long-range engagements.

Equipped with a highly sensitive, 12μm thermal sensor and 1024×768 OLED display, the Varmint LRF provides a clear image under harsh environment conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The device can be used as a thermal riflescope or handheld monocular, and is well suited to patrolling, hunting, static observation, and more.

The built-in laser rangefinder of the AGM Varmint LRF determines the exact distance between the observer and the target. Measurement results are displayed on the sight’s display.

A single 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector to significantly extend operating time.

The Varmint LRF is equipped with fast EMMC storage for on board video recording and image capture. An internal Wi-Fi module enables live video streaming and video/image recording via a smart device app.

Summary of Features

  • 12μm high sensitivity thermal detector
  • 640x480 resolution
  • 12.52° × 10.03° FOV
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Adjustable color palettes
  • Built-in laser rangefinder
  • High resolution OLED display
  • Various reticle types and colors
  • On-board video recording and snapshot
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • Up to 4.5 hours continuous runtime
  • External power supply compatibility
  • Waterproof & shockproof
  • Limited 3-year warranty
TS35-384 TS50-384 TS35-640 TS50-640
Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Resolution 384 × 288 640 × 512
Refresh Rate Sensor 50Hz / OLED 50Hz
Response Waveband 8 μm to 14 μm
Lens (Focal Length) 35 mm 50 mm 35 mm 50 mm
Aperture F1.0
Field of View 7.53° × 5.65° 5.28° × 3.96° 12.52° × 10.03° 8.78° × 7.03°
Magnification 3x – 24x 4x – 32x 2x – 16x 2.5x – 20x
Digital zoom 1x, 2x, 4x, 8x
Observation Distance 1,750 m 2,500 m 1,750 m 2,500 m
Eye Relief 45 mm
Display 1024×768, 0.39 inch, OLED
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Scene Mode Jungle, Recognition
Reticle 5 types, 4 colors, on/off
Laser Rangefinder Up to 600 m, ±2 m accuracy
Laser Wavelength 905 nm
Laser Safety Class Class 1
Boresight Adjustment Digital Controlled
Boresight Increment 0.13 mil / 0.44 MOA 0.09 mil / 0.31 MOA 0.22 mil / 0.73 MOA 0.15 mil / 0.51 MOA
One Scale Interval (Reticle #4) 2 mil / 6.75 MOA
Hotspot Yes
Sleep Mode Yes
Picture In Picture Yes
Burn Prevention Yes
Built-in Storage 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
CVBS Output Yes (via USB)
Standby Mode Yes
Battery Type 18650 (3.7V) Lithium Rechargeable Battery
Battery Operating Time (WiFi off) Up to 4.5 hours
Battery Capacity Display Yes
External Power 5 VDC/2 A, USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP6
Drop Test Height 1.5 m (4.9 ft)
Dimensions (LxWxH) 200 x 66 x 109 mm 210 x 74 x 109 mm 200 x 66 x 109 mm 210 x 74 x 109 mm
Weight (w/o batteries) 652 g (1.44 lb) 722 g (1.59 lb) 652 g (1.44 lb) 722 g (1.59 lb)
