RICO MK1
Thermal Weapon Sight

Enjoy superior image quality and ease-of-use in a compact, rugged design. Choose between two combinations of resolution and lens with detection range over 1 mile. A laser rangefinder is optional. These sights feature Matrix III image processing plus a high contrast AMOLED HD display, color imaging modes, optical and digital zoom, 50 Hz frame rate, picture-in-picture, and 32 GB storage for photos/videos plus USB-C and wireless connectivity.

Starts at: $3,999.99$2,999.99

-

Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

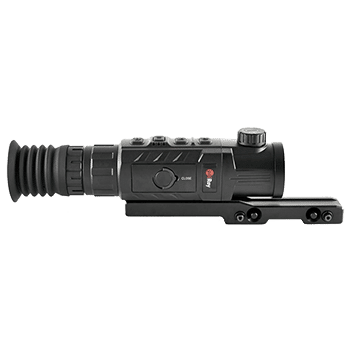

Rugged and compact RICO Mk1 Thermal Weapon Sights are built to do two things: Make the best image possible and be easy to use.

At the heart of RICO Mk1 sights are a high performance iRayUSA Micro II core and an extremely high contrast AMOLED HD display. Up to 640x480 resolution and a 50 Hz frame rate help ensure a clear image even during motion shots. Detection range is well over a mile.

An optional laser rangefinder that integrates seamlessly with the Mk1 makes it simple to know the exact distance to your target. The ILR-1000 Laser Rangefinder Module delivers +/- 1 yard accuracy out to 1000 yards* and overlays the distance on the Mk1 display. It doesn’t hide your reticle, and you can easily cycle between SGL (single ranging) and CONT (continuous ranging). The ultralight aluminum chassis is secured by an intuitive QD mount and ensures dead-nuts repeatability and ease of use, even while wearing gloves. The ILR-1000 is covered by a 5-year warranty and 1-week repair guarantee.

*Range performance depends on the target being measured and environmental conditions.

ILR-1000 shown mounted to an InfiRay Outdoor RICO Mk1

ILR-1000 shown mounted to an InfiRay Outdoor RICO Mk1.

Wild board shown in white hot mode

Wild boar shown in white hot mode.

RICO Mk1 sights take image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of the powerful MATRIX III image algorithm. The system is optically and electronically optimized, and produces an image that pushes the boundaries of long-wave infrared image clarity. Matrix III is the secret behind taking an image that other manufacturers consider acceptable and making it an image only an iRay thermal core can produce.

Unmatched image quality is paired with an intuitive and easy to use interface. Optical and digital zoom bring the image closer, and the image is enhanced with five color modes. Seven reticle types in four different colors, plus picture-in-picture and a stadiametric rangefinder, help you zero in on your target.

Images and video are stored in 32 Gb of internal memory and can be transferred to other devices over USB-C or wirelessly via an app.

​A high quality and very efficient Li-ion 3.7 V, 4400 mAh battery pack operates Mk1 sights for a minimum of 6 hours, and lasts up to 10 hours on standby. The battery can be quickly removed and replaced with a new battery or, if you don’t want to power off, your Mk1 sight can be externally powered via the USB-C connector.

A tough aluminum alloy/ABS housing and IP67 rated ingress protection make RICO Mk1 sights reliable performers. They boast 1000 G shock resistance and maximum recoil of 308 win./7mm mag.

RICO Mk1 sights come with a five year warranty.





RICO Mk1 sights mount to the weapon via a Picatinny STD-1913 rail. An ADM-RQD Quick Release Mount is available and features:

  • Patented QD Auto Lock Lever system.
  • Does not require proprietary tools for adjustment.
  • Can be adjusted with your finger or a flat blade screwdriver.
  • Lever can be configured to lock to the front or the rear.
  • Superior clamping surface to insure maximum rail engagement.
  • Fully adjustable to fit both in spec and out of spec rail systems.
  • Precision CNC machined from a block of 6061 T6 aluminum
  • Finished in hard coat type 3 Mil-Spec anodize for a rock hard lasting finish
  • Made with pride in the U.S.A.
  • Lifetime warranty.

Also available is an IBP-1 lithium ion rechargeable battery pack, which uses a cam locking mechanism to ensure quick and secure swapping of batteries in the field.

This product is backed by iRayUSA's 5-year warranty with a 5-day repair guarantee. During the 5-year warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If they cannot repair an optic in less than one week, they will offer a replacement in like or better condition.

Mk1 640 50mm Mk1 640 35mm Mk1 384 42mm
MPN RH50 RH35 RL42
UPC 850029093008 850029093558 850029093015
Sensor
Thermal Core iRay Micro II
Resolution 640×480 640×480 384×288
Pixel Size 12 µm
Frame Rate 50hz
Image Processing MATRIX III
Thermal Sensitivity N/A <50 mK N/A
Spectral Response N/A 8–12 µm N/A
Optics
Objective Lens 50 mm F1.1 35 mm F1.0 42mm F1.1
Objective Lens Material Germanium
Magnification 3X 2X 4X
Digital Zoom 4X, stepped
FOV 9° x 7° 12.6°x9.4° 6.2° x 4.6°
Detection Range 2400 Yards 1975 Yards 2000 Yards
Focusing Mechanism Manual Focus
Recoil Rating N/A 300 win./7 mm mag 308 win.
Display Type AMOLED
Display Resolution 1024×768
Imaging Modes White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types 7 (2 Dynamic, 5 Static)
Reticle Colors Black, White, Red, Green
Mounting System Picatinny STD-1913 rail
Picture-in-Picture Yes
Rangefinder Stadiametric
Laser Rangefinder Available
Eye Relief 55mm
Diopter Range -4 to +4 -6 to +2 -4 to +4
Electronics
Onboard Recording Video and image Video and image Video and image, no audio
Wi-Fi Connectivity Image/video via app
Video Output Analog RS-170/NTSC
Image Capture 640×480 JPEG
Data/Power Connector USB-C
Power Supply Li-Ion Battery Pack , 6 hours. USB-C external
Run Time 6 hours (on battery pack)
Start Up Time < 10 Seconds, Instant from Standby
Physical
Size 9.84” x 2.40” x 2.28”
Weight 29.63 Oz 29.27 Oz 29.27 Oz
Environmental/Warranty
Warranty 5 Years
Housing Material 7000 Series Aluminum/ABS
Ingress Protection IP67
Operation Temp -4°F to 122°F
Storage Temp -12°F to 167°F
Max. Recoil 308 win./7mm mag

Specifications are subject to change without notice.
