Scion™ OTM
Outdoor Thermal Monocular

Quickly detect objects of interest in complete darkness and through glaring light or haze with the FLIR Scion OTM. Built around FLIR’s powerful Boson core and a refined user interface, the Scion OTM produces clear thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing, and intuitive controls allow single-hand operation.

$3,669.00

-

Export Statement
It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required. Learn more

The FLIR Scion™ OTM captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core, the Scion OTM produces 9 Hz or 60 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments.

Trusted Thermal Detection
Able to perform at any time of day or night, the FLIR Scion OTM pierces complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of FLIR’s Boson thermal core paired with a 60 Hz image refresh rate provides smooth, unwavering vision in challenging environments.

Redesigned User Interface
The Scion OTM’s polished user interface packs functionality into a rugged handheld optic. Intuitive controls and internal menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality. The rugged IP67-rated housing stands up to the elements and protects key hardware components.

Onboard Video and Image Recording
Capture any wildlife encounter in sharp thermal imaging and store over 2 hours of video or 10,000 images in 2GB of internal storage. Expand that capacity via the built-in micoSDTM card slot (up to 128 GB). Bluetooth and Wi-Fi capabilities allow quick and simple file transfers between devices.

Scion OTM136 Scion OTM236 Scion OTM266 Scion OTM366
MPN 7TM-01-F210 7TM-01-F220 7TM-01-F230 7TM-01-F240
UPC 849815010121 849815010138 849815010145 849815010152
Core Technology BOSON 12 μm VOx Microbolometer
Detector Resolution 320 × 256 640 × 512
Lens System 18 mm 25 mm
Field of View 16° × 12° 12° × 9° 24° × 18° 18° × 13°
Optical Magnification 1.5x 1.9x 1x 1.3x
Digital Zoom 1X | 2X | 4X 1X | 2X | 4X | 8X
Refresh Rate 60 Hz
Video Recording Yes
Image Capturing Yes
Internal Memory 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Focus ∞ Manual
Eye Relief 16 mm
Display Quad-VGA (1280×960) High Definition Display
Display Focus Manual
User Interface
Temperature Imaging Modes (Thermal Palettes) White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture
Picture While Recording (PWR) Yes
Date/Time Stamp Yes
Auto Power OFF Yes
Magnetic Compass Yes
Accelerometer Yes
Interfacing
USB Type USB-C; Power In; Video Out; Video; Image File Transfer
Power
Battery Life Up to 4.5 hours at 20°c
Battery Type 6x CR123A 3V Lithium Battery
Communications
NFC (Near-Field Communications) Yes
Bluetooth™ BLE 4.1+
Wi-Fi Video Streaming
GPS No Yes
Physical
Size 227 x 76.8 x 60.5 mm (9 x 3 x 2.4 in) 227 x 76.8 x 60.5 mm (9.4 x 3 x 2.4 in)
Weight Without Batteries: 452 g; With Batteries 572 g
Color (Housing) Green / Black
Mounting 1/4-20 Tripod Mount

Specifications are subject to change without notice.

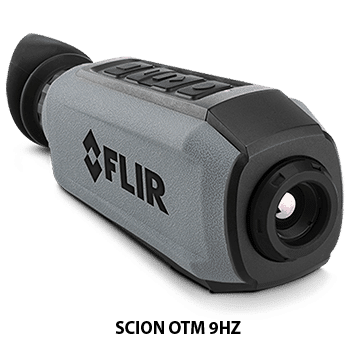

Scion OTM 9Hz Specifications
Scion OTM130 Scion OTM230 Scion OTM260
MPN 7TM-01-F110 7TM-01-F120  7TM-01-F130
UPC 849815010091 849815010107 849815010114
Detector Resolution 320 × 256 640 × 512
Lens System 13.8 mm 18 mm
Field of View 16° × 12° 12° × 9° 24° × 18°
Optical Magnification 1.5x 1.9x 1x
Digital Zoom 1X | 2X | 4X 1X | 2X | 4X | 8X
Refresh Rate 9 Hz
Focusing Range
GPS No Yes
Size 227 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
Color (Housing) Gray / Black

NOTE: 9 Hz Scion OTM models match 60 Hz Scion OTM models in all other specifications.

Specifications are subject to change without notice.

Additional information

Model

Scion OTM136, Scion OTM236, Scion OTM266, Scion OTM366
