Visimid Phoenix MWIR Thermal Imaging Core
New!
Visimid Phoenix MWIR Thermal Imaging Core
New!
Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core

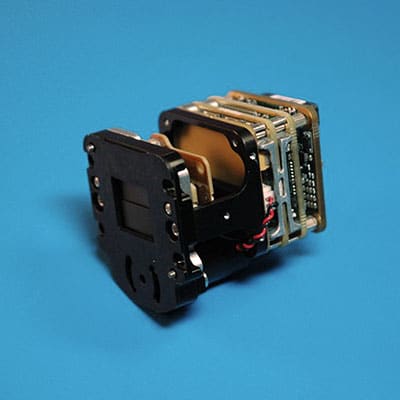

Visimid Phoenix MWIR
Thermal Imaging Core

The Phoenix Uncooled MWIR Thermal Imaging Core is designed for applications that need more sensitivity and performance in 3-5 µm region than the Phoenix Broadband core. It maintains all the same interfaces and form factor as the Broadband core with the ability to run at fast frame rates up to 900Hz. Custom interfaces are available, including for power inputs, video formats, and lens options.

Call for price

Export Statement

It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >

Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core Visimid Phoenix MWIR Thermal Imaging Core

The MWIR sensor in this core is optimized for the MWIR 3–5 µm region, making it well suited to applications that need more sensitivity at those levels. The Phoenix MWIR core matches the interfaces and form factor of the Phoenix Broadband core and supports frame rates up to 900 Hz. Custom interfaces are available, including for power inputs, video formats, and lens options.

Typical applications where additional sensitivity is needed in MWIR include:

  • Furnace and Boiler Inspection
  • Laser Absorption Spectrometry
  • Machine Vision
  • Fast Event detection
  • Combustion Process Monitoring
  • Welding Process Inspections

Key Features:

  • Sensitivity from 3–5 µm
  • 640 x 480 (17µm pitch FPA)
  • Simultaneous NTSC and CameraLink video (2 channels)
  • USB and LVTTL serial communication interfaces
  • Electronic Zoom 1X–8X
  • 30 Hz frame rate (up to 900 Hz available)
  • GigE PoE available
  • Enclosures and optics available (call for quote)

Specifications

Detector Uncooled a-Si Microbolometer
Resolution 640×480 17μm
Sensitivity 3-5 µm
Optics f/1.0 15.7 mm FL 40˚ (HFOV broadband lens optional)
Size 1.5” x 1.5” x 1.5”
Weight 52 g
Power < 1.4 Watt with Std Interface Card
Power Input 1.8–4.0 VDC or 6–18 VDC
Turn on time < 4 sec
Video Two simultaneous channels (NTSC Analog Video + CameraLink Base Digital)
Frame Rate 30 Hz (up to 900 Hz available)
Interface User GUI, LVTTL, and USB serial control*
*Custom interfaces available. Calibration using your specific optics available.
