Visimid Phoenix LWIR
Thermal Imaging Core

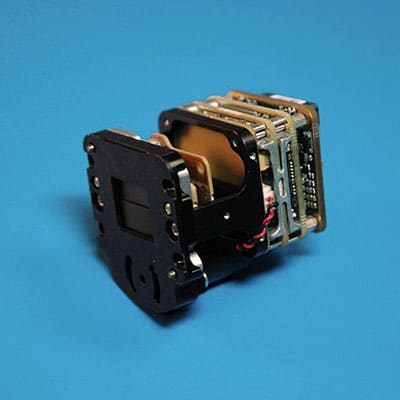

The Phoenix LWIR Thermal Imaging Core offers 320×240 or 640×480 resolution, along with the ability to run at fast frame rates. The LWIR core is solar energy tolerant, includes an Absolute Temperature based color palette, and is available as a core, module, or inside enclosure. Custom interfaces are also available.

Call for price

Export Statement

It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >

Visimid Phoenix LWIR Thermal Imaging Core Visimid Phoenix LWIR Thermal Imaging Core Visimid Phoenix LWIR Thermal Imaging Core Visimid Phoenix LWIR actual thermal image of car

The Phoenix LWIR Thermal Imaging Core offers 320×240 (< 25 mK NETD) or 640×480 (< 40 mK NETD) resolution, along with the ability to run at fast frame rates (up to 900 Hz available). Custom interfaces are available, including for power inputs, video formats, and lens options. This core is solar energy tolerant, includes Absolute Temperature based color palette, and is available as a core, module, or inside enclosure.

Suitable applications for the LWIR core include:

  • Machine Vision
  • Industrial Control
  • Fast Event detection
  • Medical Screening
  • Security & Surveillance
  • Search & Rescue

Key Features:

  • Sensitivity from 8–14 µm  (320×240 NETD <40 mK, 640×480 NETD <25 NETD)
  • 320 x 240 or 640×480 (17µm pitch FPA)
  • Simultaneous NTSC and CameraLink video (2 channels)
  • USB and LVTTL serial communication interfaces
  • Electronic Zoom 1X–8X
  • 30 Hz frame rate (up to 900 Hz available)
  • GUI control software included
  • GigE PoE available
  • Enclosures and optics available (call for quote)

Specifications

Detector
Detector Type Uncooled Amorphous Silicon Microbolometer
Resolution & Pitch 320×240 or 640×480
Spectral Band 8–14 μm
Sensitivity (NETD) High Performance ≤ 25 mK, Standard ≤ 40 mK (f/1.0 lens @ 23 C)
Frame Rate 30 Hz (60 Hz, 120 Hz, and Custom up to 900 Hz Available)
320×240 Optics
Focal Length No Lens 25 mm 11 mm 7.5 mm
FOV NA 12° x 9° 28° x 21° 40° x 31°
F-Stop NA ƒ/1.0 ƒ/1.0 ƒ/1.0
Focus NA Manual Manual Manual
Athermalized / IP Rating NA Yes/IP68 Yes/IP68 Yes/IP68
640×480 Optics
Focal Length No Lens 45 mm 30 mm 15 mm
FOV NA 14° x 10° 20° x 15° 40° x 30°
F-Stop NA ƒ/1.2 ƒ/1.0 ƒ/1.0
Focus NA Manual Manual Manual
Athermalized / IP Rating NA Yes/IP68 Yes/IP68 Yes/IP68
320×240 SWAP
Size (WxHxL) 1.4”x1.4”x1.4 1.5”x1.5”x3.3” 1.4”x1.4×2.7” 1.4”x1.4×2.7”
Weight 43 g 70 g 63 g 63 g
Power ≤1.5 W ≤1.3 W ≤1.3 W ≤1.3 W
640×480 SWAP
Size (WxHxL) 1.5”x1.5”x1.5” 2.2”x2.2”x4.2” 2.0”x2.0x3.7” 2.2”x2.2”x4.2”
Weight 52 g 233g 210g 194g
Power ≤1.5 W ≤1.5 W ≤1.5 W ≤1.5 W
Interface
Power Input 5–28 VDC
Video Output Channel 1 1 8/16/24 bit CameraLink
Video Output Channel 2 8 bit NTSC
Image Processing Histogram or AGC: Color Palette + Absolute Temperature Based
Communication User GUI, LVTTL, USB 2.0, Programmable discrete I/O’s
Environmental
Operating Temperature -40 C to 85 C
Storage Temperature -45 C to 105 C
Enclosure Available as core, module, or inside enclosure
