Pulsar Core RXQ30V
The Pulsar Core RXQ30V is a unique thermal imaging riflescope/monocular that produces heat signatures in a green sapphire tint. The Core RXQ30V features a 384×288 core with 50 Hz refresh rate, delivering thermal images to a 640×480 AMOLED display. Boasting defective pixel repair technology and IPX7 waterproof rating, this thermal riflescope has three operation modes; rocks, forest and identification, to ensure the best picture for your environment.
It's the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >
Heat Signatures in Sapphire Green
The Pulsar Core RXQ30V is a unique thermal imaging riflescope/monocular that produces heat signatures in a green sapphire tint. The Core RXQ30V features a 384×288 core with 50 Hz refresh rate, delivering thermal images to a 640×480 AMOLED display. Boasting defective pixel repair technology and IPX7 waterproof rating, this thermal riflescope has three operation modes; rocks, forest and identification, to ensure the best picture for your environment. The Core RXQ30V has a base 1.6x magnification, with 2x, 3x and 4x digital zoom. Powered up to 4 hours by two CR123A batteries, the glass-nylon composite Core can detect human-sized heat signatures at 900m and has the ability to memorize zeroing parameters.
One-Shot Zeroing with “Freeze” Function
While one-shot zeroing is standard on all Pulsar digital riflescopes, the Core adds an additional “Freeze” feature. After the initial zeroing shot, a freeze-frame of the display can be used to align the reticle with the point of impact without requiring the firearm to remain still.
Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. With only 1/10 of the display area reserved for PIP, the field of view remains virtually unobstructed for simultaneous PiP and FOV viewing.
3 Types of Zeroing Parameters Memorization
Save three individual firearm/ammunition zeroing profiles, including different reticles, at up to three distances, in the Core’s memory.

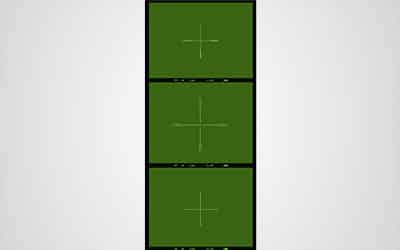

A full complement of digitally displayed reticle solutions ensures quick target acquisition and a richly contrasting sight picture. Choose from an array of reticle patterns and applications stored in the Core RXQ’s internal memory.
Green Sapphire AMOLED Display
The Core’s green Sapphire AMOLED screen enhances image quality, improves viewing comfort, and reduces eye fatigue.
The Core features three operating modes: City (enhanced contrast), Forest (low contrast), and Identification (improved rendering of heat signature details). Each mode optimizes imaging based on viewing conditions.
High Shock Resistance
The Core features exceptionally high shock resistance, capable of handling high-powered firearm recoil up to .375-cal., including smoothbore and airsoft.
During short periods of inactivity and better concealment, Display Off powers down the display without interrupting other operating functions. Using Display Off means a much faster restart time when you need it most.
Wide Range of Operating Temperatures
With a frost-resistant AMOLED display, the Core Thermal Imaging Scope is designed to deliver flawless performance at an extreme temperature range of -13° F to 122° F.
IPX7 waterproof-rated protection ensures the Core performs perfectly in wet weather, even during intense rain, snowfall, and submersion in 3 ft. of water for up to 30 min. (IEC 60529).
Wireless Remote Control
An ergonomic wireless remote control puts basic Core functions at your fingertips for comfortable, convenient, and hands-off operation.
External Power Supply
The Core RXQ30V includes a universal power adapter. Operation time can be significantly prolonged by using high-capacity external power supply unites, which can be attached via a weather-resistant micro-USB port and DC 2.1 x 5.5 mm.
- IRIS technology, increased recognition and detection software
- Detection range (human) 985 yards
- Lightweight and compact design
- Fully waterproof while battery pack is in place (IPX7)
- Frost-resistant green AMOLED display
- Interchangeable eyepiece
- Noiseless shutter
- Carrying case
- Torque screwdriver
- Wireless remote control
- Hand strap
- User manual
- Cleaning cloth
- Warranty card
Pulsar Core RXQ30V Specifications
|Core RXQ30V Thermal Riflescope Specifications|
|Microbolometer Type||Uncooled Microbolometer|
|Focusing Type of Distance||External|
|Windage & Elevation||34/34 (1 click (h/v), mm@100m)|
|Battery life||4 hours|
|External Power Supply||Yes (with adapter)|
|Lens Material||Germanium Glass|
|Body Material||Glass-nylon composite|
|Level of Protection||Waterproof (acc. to IEC 60529)|
|Calibration||Manual, automatic, and semi-automatic|
|Shock resistance||6000 (on Rifled Weapon, J)|
|Operating temperature||-13 to 122 / -25 to 50 (F/C)|
|Weight||17.6 oz (without batteries)|
|Diopter Adjustment||+5 to -5|
|Diameter||5mm (Exit Pupil)|
|Frame Rate||50 Hz|
|Microbolometer Resolution||384×288 (pixels)|
|Pixel Pitch||17 μm|
|Display Resolution||640×480 (pixels)|
|Operation Modes||Rocks, forest, identification|
|Defective Pixel Repair||Option|
|Range of detection||985 yds|
|Digital Zoom||2x, 3x, 4x|
|Relative aperture||1 /1.6 D/f’|
|Field of view||12.4° x 9.3° (horizontal & vertical without zoom)|
|Field of View||21.8 (m@100m, horizontal)|
|Distance, Minimum Focusing Distance||5m|
|Exit Pupil Diameter||5mm|
|Spectral Sensitivity||7.5/13.5 μm|
|*Disclaimer: Specifications are subject to change without notice.|
