FLIR Recon® M-18
The FLIR Recon M-18 thermal imaging pocket scope delivers high performance 640×480 resolution. It’s a lightweight and compact, fitting comfortably in your pocket and in your hand. The simple controls are easy to master. Other features: MIL hardened, submersible, covert laser pointer, remote video output, long battery life.
Starts at $9,198.00
Starts at $9,198.00
It's the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >
High Performance Tactical Pocket Scope
With the M-18’s high performance 640×480 resolution, you’ll see amazing detail in complete darkness and through light fog, smoke, dust, foliage, thin sheds, and similar hiding places in day or night.
The M-18 thermal imaging camera is lightweight and compact, fitting comfortably in your pocket and in your hand. Its simple controls are easy to master for first-time users, whether left- or right-handed.
Remote video output lets you capture video evidence of what you see through the M-18, and it can adapt to various environments and applications through image polarity, multiple color palettes, and other user settings.
The M-18 thermal imaging camera features legendary FLIR quality and components throughout its construction. It meets MIL-SPEC 810F and is fully submersible to 66 feet for up to one hour. It can also be tripod mounted. Efficient battery usage allows over 3 hours of operation.
The Recon M-18 thermal imaging camera gives law enforcement, public safety, first responders, and security operations an undeniable tactical advantage well beyond ordinary night vision, and its high performance at an affordable price leaves other thermal imagers behind.
FLIR Recon M-18 Features & Benefits
- 640 x 480 FPA high resolution imagery
- Up to 4x digital E-Zoom, optional 3x extender lens
- Compact, lightweight, and “pocket comfortable”
- Simple operation speeds proficiency for 1st-time users
- Buttons for ambidextrous use
- Covert, long distance laser pointer
- Use as a handheld or tripod mount
- Over 3 hours battery runtime
- Ruggedized to full MIL hardened standards
- FLIR controls the entire supply chain on all critical technology
FLIR Recon M-18 Specifications
|FPA Resolution||640 x 480, 320 x 240 (option)|
|E-Zoom||2x, 4x digital|
|Field of View||18.7° x 14° (standard), 13.8° x 10.4° (optional)|
|Versatility||3x Extender lens option|
|Standard||850nm at 30mW and 30.5mW, Class 3b|
|Optional||Visible, eye safe lasers|
|Display & Controls|
|Image display||640 x 480 color OLED|
|Image adjustments||AGC / ALC, manual, polarity, color, STACE™ digital image enhancement|
|User controls||On / off laser, AGC / ALC, manual calibration, NUC, recticle select, polarity, color palettes, display brightness, image enhancement modes, digital zoom|
|Recticle||Auto-scale with zoom|
|Video out||NTSC, PAL|
|Power source||Two 3V CR123 batteries|
|Battery life||>3 hours with 640 array
>3.5 hours with 320 array
|Inputs & Outputs|
|Output||Video (NTSC or PAL)|
|Diemsions, Weight & Mounting|
|Weight||14 oz (~480 grams) with batteries|
|Mounting||1/4-20 tripod mount|
|Dimensions||5″ L x 3.25″ W x 2.25″ H
(12.7 x 8.25 x 5.7cm)
|Operating temp||-32° to +55°C|
|Water immersion||66′ for 1 hour|

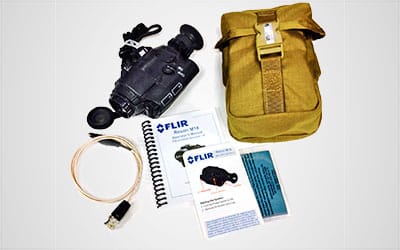

|Included||Lanyard, carry bag with belt clip, video output cable, laminated quick reference card, spare batteries, operators manual|
|Optional||3x extender lens|
