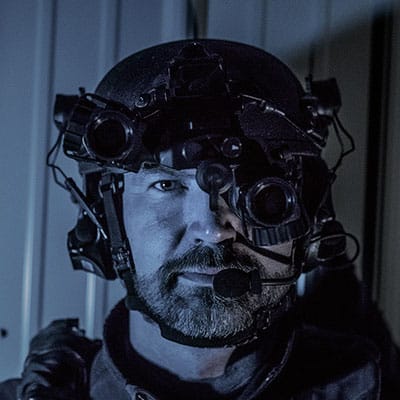

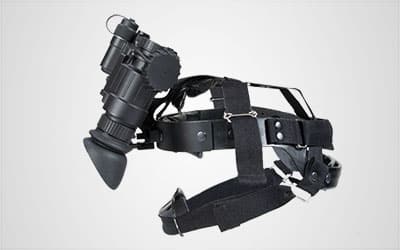

Armasight BNVD night vision binoculars Armasight BNVD night vision binoculars shown mounted to tactical helmet Armasight BNVD night vision binoculars shown with head harness Armasight BNVD night vision binoculars shown in tactical situation Field-of-view comparison 40 degree vs 51 degree field of view comparison

Armasight by FLIR BNVD
Night Vision Binoculars

The BNVD is a dual-channel night vision system. With a 40° or 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The BNVD uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the BNVD can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

Starts at $3,995.00

Starts at $3,995.00

Starts at $3,995.00
SKU: Array Category:
Export Statement

It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >

Armasight BNVD night vision binoculars Armasight BNVD night vision binoculars shown mounted to tactical helmet Armasight BNVD night vision binoculars shown with head harness Armasight BNVD night vision binoculars shown in tactical situation Field-of-view comparison 40 degree vs 51 degree field of view comparison

Dual Tubes for Exceptional Field of View

Dual Gen 2+ or Gen 3 tubes and advanced multi-coated optics provide either a 40° or 51° field of view (FOV). Dual tubes provide better depth perception and situational awareness for improved navigation. The large visual field makes it easier to track moving objects without needing to move the binoculars. A built-in IR illuminator enhances night vision and allows for reading in the dark.

Perfect Balance of Size and Performance

  • The BNVD is built with a tough, ergonomic composite housing that is water and fog resistant.
  • Only a single AA battery or one CR123 battery provides up to 20 hours of operation.
  • An optional battery pack mounted behind the helmet extends the operating time up to 80 hours.

Flexible Mounting Options and Configurations

  • For hands-free operation, the BNVD includes head and helmet mounting options. It can be used as binoculars, as a monocular, goggles, or stowed out of the way.
  • Operated by a single gain control knob.
  • When mounted to a helmet, the BNVD features flip-up-turn-off and a flip-down-turn-on.

Package Includes

Night Vision Binoculars, NVG Interface Shoe (preinstalled), Bayonet/Horn Interface Shoe Battery, Sacrificial Window (2), Demist Shield (2), Lens Cloth, Soft Carrying Case

Optional Accessories

  • ANAF3X0215 – 3x Afocal Lens Kit (includes 2 lenses)
  • ATAM000206 – Battery Pack #206 (Includes: Battery Pack Bracket #231, Nylon Bag)
  • ATAMNYX15M – Battery Pack Kit (Includes: Battery Pack #206 w/ Battery Pack Bracket #231and Nylon Bag, NVG Interface Shoe with Connector #212, Battery Locking Plate Adapter #213)
  • ANAM000213 – Battery Locking Plate Adapter #213
  • ANAM000212 – NVG Interface Shoe with Connector #212
  • ANHGNYX205 – Goggle Kit for BNVD (Includes: Goggle Kit #205, Adapter #224)
  • ANHGWXNYX0 – Tactical Goggle Kit for BNVD (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox Lanyard, Crye Precision Head Cap)
  • ANHMNYX15M – Helmet Mount Kit for BNVD (Includes: Helmet Mount #3, Adapter #224)
  • ANHC000001 – Hard Shipping / Storage Case #101

Specifications

Generation 2 Model Specfications
Model BNVD-40 2ID BNVD-40 2HD BNVD-40 2QS BNVD-51 2HD
MPN NSGNYX15M429DI1 NSGNYX15M429DH1 NSGNYX15M4Q9DI1 NSGNYX15M529DH1
UPC 849815009347 849815009354 849815009361 849815009484
IIT Generation Gen 2+: “Improved Definition” Gen 2+: “High-Definition” Gen 2+: “Quick Silver” White Phosphor Gen 2+: “High-Definition”
Magnification 1x standard (3x optional)
Photocathode Type Multi-Alkali
Lens System F/1.3; 27 mm F/1.26; 19 mm
Field of View 40° 51°
Focus Range 0.25m to Infinity
Eye Relief 17 mm
Diopter Adjustment -6 to +2 dpt
Manual Gain Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (built-in with pivotal flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply One AA (1.5 V) or 123A (3 V)
Battery Life Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -50°C to +50°C (-58°F to +122°F)
Overall Dimensions 115 × 118 × 73 mm (4.5 × 4.6 × 2.8 in)
Weight 0.64 kg (1.42 lbs)
Warranty 2 Years
* All data subject to change without notice.



Generation 3 Model Specfications
Model BNVD-40 3A BNVD-40 3AG BNVD-40 3G
MPN NSGNYX15M439DA1 NSGNYX15M4P9DA1 NSGNYX15M4G9DA1
UPC 849815009309 849815009316 849815009323
IIT Generation Gen 3: “High-Performance” Gen 3: “High-Performance” Thin-Filmed Auto-Gated IIT Gen 3: “Ghost” White Phosphor
Magnification 1x standard (3x optional)
Photocathode Type GaAs Multi-Alkali
Lens System F/1.3; 27 mm
Field of View 40°
Focus Range 0.25m to Infinity
Eye Relief 17 mm
Diopter Adjustment -6 to +2 dpt
Manual Gain Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (built-in with pivotal flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply One AA (1.5 V) or 123A (3 V)
Battery Life Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -50°C to +50°C (-58°F to +122°F)
Overall Dimensions 115 × 118 × 73 mm (4.5 × 4.6 × 2.8 in)
Weight 0.64 kg (1.42 lbs)
Warranty 2 Years
* All data subject to change without notice.



Generation 3 Model Specfications (Continued)
Model BNVD-51 3A BNVD-51 3AG BNVD-51 3G
MPN NSGNYX15M539DA1 NSGNYX15M5P9DA1 NSGNYX15M5G9DA1
UPC 849815009439 849815009446 849815009453
IIT Generation Gen 3: “High-Performance” Gen 3: “High-Performance” Thin-Filmed Auto-Gated IIT Gen 3: “Ghost” White Phosphor
Magnification 1x standard (3x optional)
Photocathode Type GaAs
Lens System F/1.26; 19 mm
Field of View 51°
Focus Range 0.25m to Infinity
Eye Relief 17 mm
Diopter Adjustment -6 to +2 dpt
Manual Gain Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (built-in with pivotal flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply One AA (1.5 V) or 123A (3 V)
Battery Life Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -50°C to +50°C (-58°F to +122°F)
Overall Dimensions 115 × 118 × 73 mm (4.5 × 4.6 × 2.8 in)
Weight 0.64 kg (1.42 lbs)
Warranty 2 Years
* All data subject to change without notice.



Generation Flag Model Specifications
Model BNVD-40 3F BNVD-51 3F
MPN NSGNYX15M4F9DA1 NSGNYX15M5F9DA1
UPC 849815009330 849815009460
IIT Generation “FLAG” Filmless Auto-Gated IIT (Advertised by competition as Gen 4)Gen 2+: “High-Definition”
Magnification 1x standard (3x optional)
Photocathode Type GaAs
Lens System F/1.3; 27 mm F/1.26; 19 mm
Field of View 40° 51°
Focus Range 0.25m to Infinity
Eye Relief 17 mm
Diopter Adjustment -6 to +2 dpt
Manual Gain Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (built-in with pivotal flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply One AA (1.5 V) or 123A (3 V)
Battery Life Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -50°C to +50°C (-58°F to +122°F)
Overall Dimensions 115 × 118 × 73 mm (4.5 × 4.6 × 2.8 in)
Weight 0.64 kg (1.42 lbs)
Warranty 2 Years
* All data subject to change without notice.
