AGM StingIR Thermal Imaging Monocular
AGM StingIR Thermal Imaging Monocular
AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular

AGM StingIR
Thermal Imaging Monocular

The AGM StingIR is well suited to security enforcement, outdoor hunting, wilderness exploration, search and rescue, and other applications. A highly sensitive 12µm thermal sensor plus 1024×768 OLD display produces clear images even in total darkness. Weighing under 7 ounces, StingIR works as a compact handheld or mounts to a helmet or head harness, with continuous operation up to 5 hours.

AGM StingIR Data Sheet (PDF)

Starts at: $2,795.00

SKU: N/A Category:

Related products

Export Statement

It is the responsibility of the buyer to comply with export control laws and regulations of the United States Government and to obtain export licenses if required.Learn more >

AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular AGM StingIR Thermal Imaging Monocular

The AGM StingIR thermal imaging monocular is equipped with a high sensitivity 12µm thermal detector with either 384×288 or 640×480 resolution. Even in total darkness, the thermal images are clearly displayed on the 1024×768 OLED display.

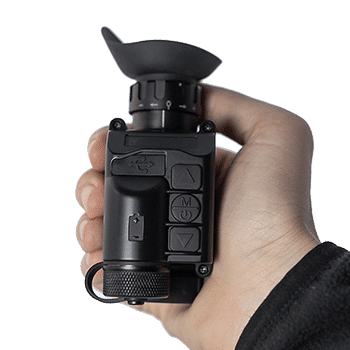

StingIR is a full-featured thermal imaging monocular, but weighs less than 7 oz. (200 g) and fits easily in the palm of your hand. It can also be mounted on a head harness or helmet for hands-free operation.

Features include digital zoom, digital compass, inclinometer, picture-in-picture, and video output (via USB). Depending on the battery used, StingIR can be used in continuous operation for up to 5 hours. It has an ingress protection rating of IP67 and comes with a limited 3-year warranty.

AGM StingIR Features

  • 12μm high-sensitivity detector
  • 384×288 or 640×480 resolution
  • Head- or helmet-mountable for hands-free usage
  • Compact, sturdy design
  • High-resolution OLED display
  • Multiple thermal image palettes
  • Device supports up to 8× digital zoom
  • Powered by one CR123A/RCR123 or 18650 Lithium battery
  • Up to 5 hours continuous running
  • Digital compass and inclinometer
  • Limited 3-year warranty

AGM StingIR Package Includes:

  • StingIR monocular
  • Helmet adapter bracket
  • 18650 battery cap
  • USB Type-C cable
  • Operation manual
  • Hard case

AGM StingIR Specifications

StingIR-384 StingIR-640
MPN 3152451012ST11 3152751013ST21
UPC 810027779830 810027779847
Resolution 384×288 640×480
Refresh Rate 50 Hz
Detector 12 μm Uncooled VOx Microbolometer
Lens (Focal Length) 16 mm 27 mm
Aperture F1.3 F1.1
Field of View (H x V) 16.3° × 12.3° 16.3° × 12.3°
Magnification 1×
Detection Range 730 m 1200 m
Exit Pupil Diameter 12 mm
Exit Pupil Distance 20 mm
Diopter Adjustment Range -5 to +2 dpt
Digital Zoom 1×, 2×, 3×, 4× 1×, 2×, 4×, 6×, 8×
Monitor 1024×768 OLED
Palettes WhiteHot, BlackHot, OrangeHot, Rainbow
Application Scenarios Default, Outdoor, Arctic, Rainforest
FFC (Flat Field Correction) Auto (1 to 10 min. interval) or Manual
Digital Compass Yes
Digital Inclinometer Yes (Pitch angle and Roll angle)
PIP Yes
Crosshair Display On/Off; Position adjustment; Selection of White, Black, or Green color
Analog Video Output PAL video output via USB port
Battery Type One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
Battery Operating Time (20°C)
CR123A
RCR123
18650		 Up to 3 hrs
Up to 2 hrs
Up to 5 hrs		 Up to 2.5 hrs
Up to 1.5 hrs
Up to 4.5 hrs
USB Type-C Interface Power input / USB-RS232 / PAL video output
External Power 5 VDC/2 A, 1.5 W
Working Temperature -10°C to 60°C (14°F to 140°F) -20°C to 50°C (-4°F to 122°F)
Protection Level IP67
Dimension 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
Weight 200 g (7.0 oz) 220 g (7.8 oz)

Order a AGM StingIR
